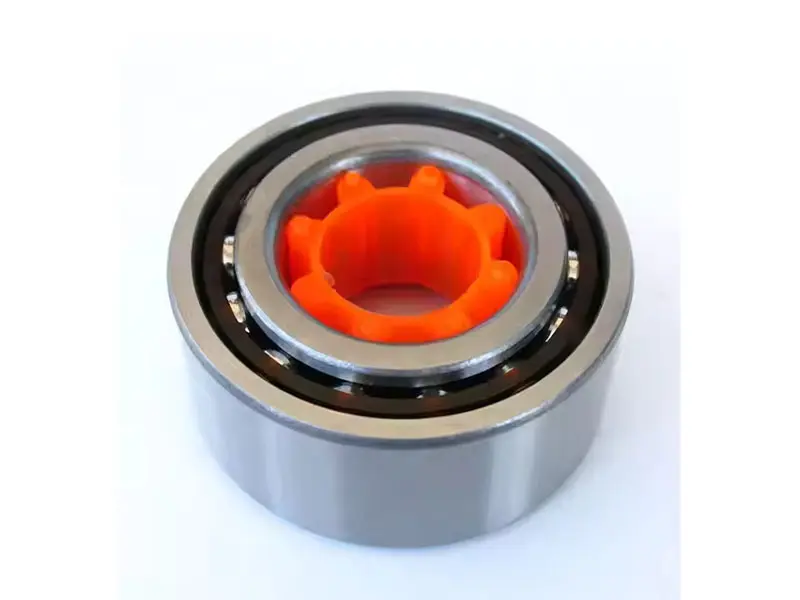

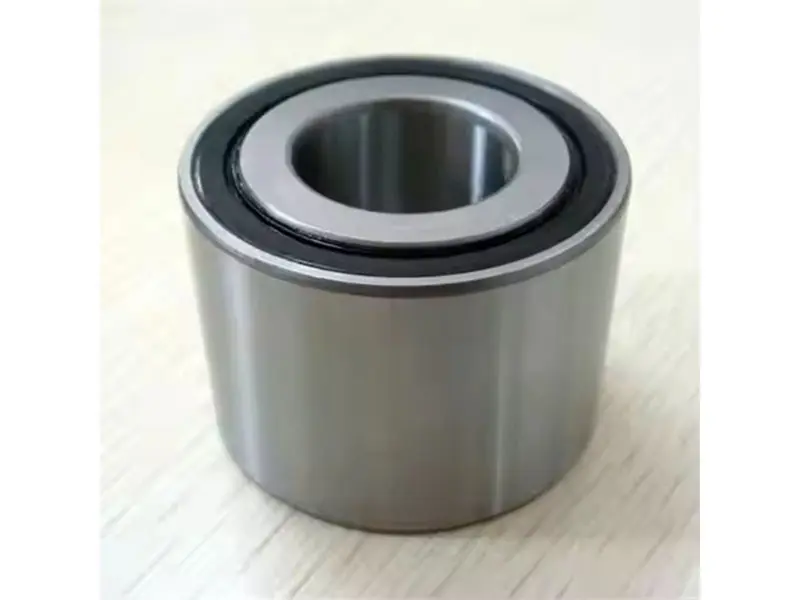

Bearing Detail

Item No.	DAC35650035
Bearing Type	Wheel hub bearing
Ball Bearing seals	DDU, ZZ, 2RS
Number of Row	DOUBLE ROW
Material	Chrome steel GCr15
Precision	P0,P2,P5,P6,P4
Clearance	C0,C2,C3,C4,C5
Noise	V1,V2,V3
Weight	0.45kg
Seal	sealed
Specification	356535mm
Usage	Car, Truck, Trailer, Automotive vehicles
Brand	JITO or OEM
Ball Bearings Feature	Long-life with high quality
	Low-noise with strict controlling the quality of JITO bearing
	High-load by the advanced high-technical design
	Competitive price, which has the most valuable
	OEM service offered, to meet the customers requirements
Application	Gearbox,auto,reduction box,engine machinery,mining machinery,etc
Bearing Package	Pallet,wooden case,commercial packaging or as customers requirement
Delivery port	Tianjin or Qingdao
Lubrication	Grease or oil

Performance characteristics

Strong load-bearing capacity: can withstand the radial force and axial force generated by the vehicle during driving, ensuring the stable operation of the wheel hub.

Compact structure: compact design, can provide good support and rotation function in a limited space, contribute to the lightweight design and space utilization of the vehicle.

Good sealing: generally equipped with a good sealing device, which can effectively prevent dust, moisture and impurities from entering the bearing, reduce wear and corrosion, and extend the service life of the bearing.

Lubrication

Grease: High-temperature, high-load grease is typically used.

Oil: In some applications, oil lubrication may be used for better heat dissipation.

Self-aligning: These bearings can accommodate misalignment between the shaft and housing, which is beneficial in applications where shaft deflection or misalignment is a concern.

Features

Strong load-bearing capacity: can bear axial load and radial load at the same time, providing stable support for automobile wheel hub.

High rotation accuracy: ensure the stability and accuracy of the wheel during rotation, reduce vibration and noise.

Good sealing: can effectively prevent dust, moisture and impurities from entering the bearing, extending the service life of the bearing.

Easy to install: standardized design makes it easy to install and disassemble, reducing maintenance costs and time.

Application field: mainly used in the automotive field, such as some models of Renault, Chrysler and other brands, used in the front or rear wheel hub of the car, and is an important part of the automobile hub system.

Installation

Mounting: Proper mounting techniques should be followed to avoid damaging the bearing. This includes using the correct tools and ensuring that the bearing is aligned properly.

Temperature Control: During operation, it's important to monitor the temperature to ensure it stays within the recommended range.

Description

The traditional automobile wheel bearings are composed of two sets of tapered roller bearings or ball bearings. The mounting, oiling, sealing and clearance adjustment of the bearings are all carried out on the automobile production line.This kind of structure makes it difficult to assemble in the automobile production plant, high cost, poor reliability, and when the automobile is maintained in the maintenance point, it also needs to clean, grease and adjust the bearing.Wheel hub bearing unit is in the standard angular contact ball bearings and tapered roller bearings, on the basis of it will be two sets of bearing as a whole, has the assembly clearance adjustment performance is good, can be omitted, light weight, compact structure, large load capacity, for the sealed bearing prior to loading, ellipsis external wheel grease seal and from maintenance etc, and has been widely used in cars, in a truck also has a tendency to gradually expand the application.

1.Automobile wheel bearing structure:

The largest number of wheel bearings for cars used in the past was the use of single row tapered roller or ball bearings in pairs. With the development of technology, car hub units have been widely used in cars. The range and use of hub bearing units is growing, and today it has reached the third generation: the first generation consists of double row angular contact bearings. The second generation has a flange for fixing the bearing on the outer raceway, which can be simply fixed to the axle by a nut. Make the maintenance of the car easier. The third-generation hub bearing unit is equipped with a bearing unit and an anti-lock brake system ABS. The hub unit is designed with an inner flange and an outer flange, the inner flange is bolted to the drive shaft, and the outer flange mounts the entire bearing together.

2.Automotive wheel bearing applications:

The main function of the hub bearing is to load and provide precise guidance for the rotation of the hub. It is both an axial load and a radial load and is a very important component. The traditional automotive wheel bearings are composed of two sets of tapered roller bearings or ball bearings. The installation, oiling, sealing and clearance adjustment of the bearings are carried out on the automobile production line. This structure makes it difficult to assemble in a car production plant, high in cost, and poor in reliability, and the car needs to be cleaned, oiled, and adjusted at the time of maintenance at the maintenance point.

3.Automotive wheel bearing features:

The hub bearing unit is developed on the basis of standard angular contact ball bearings and tapered roller bearings. It integrates two sets of bearings and has good assembly performance, can eliminate clearance adjustment, light weight, compact structure and load capacity. Large, sealed bearings can be pre-loaded with grease, omitting external hub seals and maintenance-free. They have been widely used in cars, and there is a tendency to gradually expand applications in trucks.

Regular style size

Bearing No.	Dimensions(mm)				N.W.	Corresponding Item No.			Seal form
Bearing No.	d	D	B	C	Kg	SKF	FAG	KOYO	Seal form
DAC124000183	12	40	18.3	18.3	0.11	C-00187			D
DAC20420030/29	20	42	30	29	0.17	565592 J22	539816		B
DAC205000206	20	50	20.6	20.6	0.21	156704			A
DAC205000206S	20	50	20.6	20.6	0.22		320104		A
DAC2184800206/18	21.8	48	20.6	18	0.25				A
DAC25520037	25	52	37	37	0.31	445539A	576467		B.C.E
DAC25520037S	25	52	37	37	0.31	FC12025			B.D.F
DAC25520042	25	52	42	42	0.34	25BWD01			BCE
DAC25520043	25	52	43	43	0.35				B
DAC255200206/23	25	52	20.6	23	0.33				B
DAC25550043	25	55	43	43	0.36			IR-2222	B.C
DAC25560032	25	56	32	32	0.34				D
DAC25560029/206	25	56	29	20.6	0.32				B
DAC254650027/24	25.4	65	27	24	0.6				A
DAC25720043	25	72	43	43	0.65				I
DAC27520045	27	52	45	45	0.36				B
DAC27530043	27	53	43	43	0.36				B
DAC27600050	27	60	50	50	0.56	27BWD01J	IR-8653		B.I
DAC28580042	28	58	42	42	0.45	28BWD03A		DAC28582RK	B
DA C28610042	28	61	42	42	0.53	28BWD01A			A.B
DAC29530037	29	53	37	37	0.34		801023A		D?
DAC30500020	30	50	20	20	0.13				B
DAC30540024	30	54	24	24	0.36			DE0681	A
DAC30550030/25	30	55	30	25	0.39			ATV-BB-2	A
DAC30550032	30	55	32	32	0.27				D
DAC30580042	30	58	42	42	0.48				B
DAC30600037	30	60	37	37	0.42			6-256706E1	B.C
DAC30600337	30	60.03	37	37	0.42	633313C	529891AB	545312	B.C.D
DAC3060037/34	30	60	37	34	0.4				A
DAC30620032	30	62	32	32	0.36			30BVV06	B
DAC30620037	30	62	37	37	0.42		IR-8004		D
DAC30620038	30	62	38	38	0.43	30BWD10			D
DAC30620044	30	62	44	44	0.44				B
DAC30630042	30	63	42	42	0.47	30BWD01A		DAC3063W-1	A.B
DAC30640037	30	64	37	37	0.47				D
DAC30640042	30	64	42	42	0.49			DAC3064WRKB	F
DAC30650021	30	65	21	21	0.27	630374/C4	522372	IR-8014	B
DAC306500264	30	65	26.4	26.4	0.36	320406			B
DAC30680045	30	68	45	45	0.52	30BWD04			E
DCA307200302	30	72	30.2	30.2	0.31		3306		A
DAC30720037	30	72	37	37	0.8	BAHB636035			A
DAC32720045	32	72	45	45	0.6	32BWD05			A
DAC32580065/57	32	58	65	57	0.6				B
DAC32720034	32	72	34	34	0.6				B
DAC34620037	34	62	37	37	0.41	309724 BAHB311316B	561447		B.C
DAC34620037	34	62	37	37	0.41	309724 BAHB311316B	531910		B.C
DAC34640037	34	64	37	37	0.43	309726DA	532066DE	DAC3464G1	C.E.G.F
DAC34660037	34	66	37	37	0.41	636114A	580400CA		C.E
DAC34670037	34	67	37	37	0.44				C
DAC35680233/30	34.99	68.02	33	30	0.47			DAC3568W-6	A
DAC35620031	35	61.8	31	31	0.35			DAC3562AW	A
DAC35620040	35	61.8/62	40	40	0.42			DAC3562W-5CS35	B.D
DAC35640037	35	64	37	37	0,41			DAC3564A-1	C.D
DAC35650035	35	65	35	35	0.4	BT2B445620B	546238A		B.C.D
DAC35660032	35	66	32	32	0.42	445980A			B.D
DAC35660033	35	66	33	33	0.43	BAHB633676			B
DAC35660037	35	66	37	37	0.48	BAHB311309	544307	BAHB0023	C.E
DAC35670042	35	67	42	42	0.45				D
DAC35680233/30	34.99	68.02	33	30	0.47				A
DAC35680037	35	68	37	37	0.48	PLC15-12	GB12132S03	DAC3568A2RS	B.C.D
DAC35680042	35	68	42	42	0.52				B
DAC35680045	35	68	45	45	0.52				B
DAC35720027	35	72	27	27	0.43				A
DAC35720028	35	72.02	28	28	0.44				A
DAC35720033	35	72	33	33	0.58	BAHB633669	548083	GB12094	B.C
DAC35720034	35	72	34	34	0.6				B
DAC35720233/31	35	72.02	33	31	0.56			DAC357233B-1W	A
DAC35720433	35	72.04	33	33	0.58	BA2B446762B		GB12862	D
DAC35720042	35	72	42	42	0.7				B
DAC35720045	35	72	45	45	0.72				B
DAC35760054	35	76	54	54	0.84	35BWD10			G
DAC36680033	36	68	33	33	0.5			DAC3668AW	A.B.D
DAC36720434	36	72.04	34	340	0.58				B
DAC36720534	36	72.05	34	34	0.58	36BWD01C	559225	DAC367234A	A
DAC37680045	37	68	45	45	0.72				B
DAC37720033S	37	72	33	33	0.58	BAH0051B		GB40547	B.E
DAC37720037	37	72	37	37	0.59		TGB40547	GB12807.S03	D
DAC37720237	37	72.02	37	37	0.59	BA2B633028	527631	GB12258	B.C.D
DAC37720437	37	72.04	37	37	0.59	579794		GB12131	B.C.D
DAC37740045	37	74	45	45	0.79	309946AC	541521C		B.C
DAC37720052/45	37	72	52	45	0.7				D
DAC38700040	38	70	40	40	0.58				C
DAC38710233/30	37.99	71.02	33	30	0.5		38BWDD09	DAC3871W-2	A
DAC38720236/33	37.99	72.02	36	33	0.54			DAC3872W-3-8	A.B
DAC38740236/33	37.99	74.02	36	33	0.58		574795	DAC3874W-6	A
DAC38700037	38.1	70	37	37	0.52	636193A			C.D
DAC38700038	38	70	38	38	0.55			DAC3870BW	C.D
DAC38710039	38	71	39	39	0.62			DAC3871W-3	C.D
DAC38720034	38	72	34	34	0.46			DAC3872ACS42	B
DAC38720040	38	72	40	40	0.63			DAC3872W-10	C.D
DAC38730040	38	73	40	40	0.65			DAC3873-W	C
DAC38740040	38	74	40	40					B
DAC38740050	38	74	50	50	0.78	38BWD06	559192	NTNDE0892	B.G
DAC38740036	38	74	36	36	0.46				B.D
DAC39670037	39	67	37	37	0.46				B
DAC39680037	39	68	37	37	0.48	BA2B309692	540733		C.G.D.F
DAC39680037	39	68	37	37	0.48	311315BD 309396	540733		C.G.D.F
DAC39680737	39	68.07	37	37	0.48				C.D
DAC39720037	39	72	37	37	0.56	309639	542186A	DAC3972AW4	C.E
DAC39720037	39	72	37	37	0.56	BAHB311396B	801663D	DAC3972AW4	C.E
DAC39720437	39	72.04	37	37	0.56	801663E			C.E
DAC39740036/34	39	74	36	34	0.62				B.D
DAC39740034	39	74	34	34	0.6				B
DAC39740038	39	74	38	38	0.65				B
DAC39740039	39	74	39	39	0.66	636096A	579557		B.D
DAC39/41750037	39/41	75	37	37	0.62	BAHB633815A	567447B		B.C
DAC40680042	40	68	42	42	0.51				C
DAC40720036	40	72	36	36	0.54				C
DAC40720037	40	72	37	37	0.55	BAHB311443B	566719		C.G.F
DAC40720036/33	40	72	36	33	0.54			DAC4072W-3CS35	A
DAC40720437	40	72.04	37	37	0.55	801663D			C.G
DAC40720637	40	72.06	37	37	0.55				C.G
DAC40730055	40	73	55	55	0.58				D
DAC40740036/34	40	74	36	34	0.58			DAC4074CWCS73	A
DAC40740036	40	74	36	36	0.6		AU0817-5	40BWD15	B.D
DAC40740040	40	74	40	40	0.66	801136	559493	DAC407440	B.D
DAC40740042	40	74	42	42	0.7			40BWD12	D
DAC40750037	40	75	37	37	0.62	BAHB633966	559494		B.C.D
DAC40760033	40	76	33	33	0.55		555800		B.D
DAC40760033/28	40	76	33	28	0.54	474743	539166AB		A
DAC40760036	40	76	36	36	0.55				B.G
DAC40760041/38	40	76	41	38	0.66		40BWD05	DAC4076412RS	I
DAC40800302	40	80	30.2	30.2	0.65	440320H	565636		A.D
DAC40800302	40	80	30.2	30.2	0.65	Y44FB10394	523854		D
DAC40800036/34	40	80	36	34	0.7			DAC4080M1	B.D
DAC408000381	40	80	38.1	38.1	0.75		534682B		B.E
DAC40820040	40	82	40	40	0.8				A
DAC40840034	40	84	34	34	0.94				A
DAC40840038	40	84	38	38	0.96	GB40250			B.D
DAC40800040	40	80	40	40	0.83				C.D
DAC40842538	40	84.25	38	38	0.97	GB40250S01			B.D
DAC40900046	40	90	46	46	0.92			PT40900046	A
DAC401080032/17	40	108	32	17	1.2	BA2B445533		TGB10872S02	G
DAC42720038/35	42	72	38	35	0.54				B
DAC42720038	42	72	38	38	0.66				B
DAC42750037	42	75	37	37	0.59	309245	545495D		B.C
DAC42750037	42	75	37	37	0.59	633196	533953		B.C
DAC42720037	42	72	37	37	0.6				D
DAC42750045	42	75	45	45	0.63				B
DAC42760033	42	76	33	33	0.56		555801		B
DAC42760038/35	42	76	38	35	0.58	42BWD06		IR8650	A
DAC42760039	42	76	39	39	0.62		579102		B
DAC42760040/37	42	76	40	37	0.64	909042	547059A	DAC427640 2RSF	B
DAC42760037/35	42	76	37	35	0.56				D
DAC42780040	42	78	40	40	0.66				B
DAC42800042	42	80	42	42	0.8				B
DAC42780045	42	78	45	45	0.68				B
DAC42780038	42	78	38	38	0.64			42BW09	D
DAC42800036/34	42	80	36	34	0.7				B.D
DAC42800037	42	80	37	37	0.79				B.C.D
DAC42800045	42	80	45	45	0.85			DAC4280W-2CS40	B.C.D
DAC42800037	42	80	37	37	0.75				C.D
DAC42800342	42	80.03	42	42	0.81	BA2B309609AD	527243C	DAC4280B 2RS	B.C
DAC42820036	42	82	36	36	0.77	BA2B446047	561481	GB12163 SO4	A.B.D
DAC42820037	42	82	37	37	0.77	BAHB311413A	565636	GB12269	B.C
DAC42840034	42	84	34	34	0.75	Y44GB12667			A
DAC42840036	42	84	36	36	0.88	BA2B444090A	564727	GB10857 S02	B
DAC42840037	42	84	37	37	0.91				B
DAC42840039	42	84	39	39	0.93	440090	543359B	GB10702 S02	B.C.D
DAC42842538	42	84.25	38	38	0.93				B.E.F
DAC43760043	43	76	43	43	0.66				B.C
DAC43770042/38	43	77	42	38	0.64				D
DAC43790041/38	43	79	41	38	0.84			DAC4379-1	F.D
DAC43800050/45	43	80	50	45	0.95		43BWD03	DAC4380A	A
DAC43820045	43	82	45	45	0.9		43BWD06	DAC4382W-3CS79	B.C
DAC43/45820037	43/45	82	37	37	0.76	BAHB633814A	567519A		B.D
DAC43/45850037	43/45	85	37	37	0.8				D
DAC448250037	44	82.5	37	37	0.76			GB40246S07	D
DAC44850023	44	85	23	23	0.54		4209ATN9		A
DAC45750027/15	45	75	27	15					A
DAC45750023/15	45	75	23	15					A
DAC45800045	45	80	45	45	0.95		564725AB		B
DAC45800045/44	45	80	45	44	0.95				D
DAC45800048	45	80	48	48	0.99				D
DAC45830044	45	83	44	44	0.9				B
DAC45830045	45	83	45	45	0.92				B
DAC45840038	45	84	38	38	0.87				B
DAC45840039	45	84	39	39	0.88	309797	45BWD03		B.D.I
DAC45840041/39	45	84	41	39	0.9			DAC4584DW	D
DAC45840042/40	45	84	42	40	0.9		45BWD07		D
DAC45840042	45	84	42	42	0.9				B
DAC45850023	45	85	23	23	0.56		4209		A
DAC458500302	45	85	30.2	30.2	0.83			DAC 2004	B
DAC45850041	45	85	41	41	0.9				B.F
DAC45850051	45	85	51	51	1				B.F
DAC45850047	45	85	47	47	1				B
DAC45880045	45	88	45	45	1.15				D
DAC45880039	45	88.02	39	39	0.98				B.D
DAC47810053	47	81	53	53	0.98				F
DAC47850045	47	85	45	45	0.98		559431		B.F
DAC48820037/33	48	82	37	33	0.82				B
DAC49840039	49	84	39	39	0.93				B.D
DAC49840048	49	84	48	48	0.98				B
DAC49880046	49	88	46	46	0.95		572506		B
DAC50820033/28	50	82	33	28	0.78				D
DAC50900034	50	90	34	34	0.83	633007C	528514		B
DAC50900040	50	90	40	40	0.98				C
DAC55900060	55	90	60	60	0.99				D.E

If more, please click our website www.jito.cc

Advantage

Solution

At the beginning, we will have a communication with our customers on their demand, then our engineers will work out an optimum solution based on the customers’ demand and condition.

Quality Control (Q/C)

In accordance with ISO standards, we have professional Q/C staff, precision testing instruments and internal inspection system, the quality control is implemented in every process from material receiving to products packaging to ensure our bearings quality.

Package

Standardized export packing and environment-protected packing material are used for our bearings, the custom boxes, labels, barcodes etc. can also be provided according to our customer’s request.

Logistic

Normally, our bearings will be sent to the customers by ocean transportation due to its heavy weight, airfreight, express is also available if our customers need.

Warranty

We warrant our bearings to be free from defects in material and workmanship for a 12 months period from the shipping date, this warranty is voided by non-recommended use, improper installation or physical damage.

High Precision Wheel Hub Bearing Automotive Front Bearing DAC35650035

Key Material Properties for DAC35650035 Bearing

Bearing Detail

Performance characteristics

Features

Installation

Description

Regular style size

Advantage

Solution

Quality Control (Q/C)

Package

Logistic

Warranty

DAC458242 ABS Wheel Hub Bearing 458242 Vehicle Front Wheel Hub Bearing OEM/JITO

DAC42820036 Wheel Hub Bearing Automobile Application double-row angular contact ball bearing structure

DAC38740036/33 Wheel Hub Bearing 387436 OEM Manufacturer Load-bearing High-precision Guidance

Function

DAC42840040 Wheel Hub Bearing 428440 Automotive Front Bearing Chrome Steel GCr15 High Precision

Leave Your Message
