Customized Size Oil Seal NBR FKM EPDM Silicone HNBR PU Wear Resistant
Product parameter
|
Material |
Hardness |
Temperature |
Property |
|
SIL/VMQ |
50A |
Extreme temperature -60℃-250℃ |
High and low temperature resistant Commonly used in food grade FDA |
|
NBR |
Standard 70A Customizable 40A-90A |
Extreme temperature -40°C-120°C |
Oil and wear resistant |
|
FKM/VITON |
Standard 70A Customizable 50A-90A |
Extreme temperature -40°C-240°C |
High temperature resistance, oil resistance, chemical resistance |
|
EPDM |
Standard 70A Customizable 40A-90A |
Extreme temperature -40°C-150°C |
Strong acid and alkali resistant, 150° water vapor resistant Aging resistant, ozone resistant High temperature resistant, low temperature resistant Commonly used in food grade FDA |
|
HNBR |
Standard 70A Customizable 40A-90A |
Extreme temperature -40°C-120°C |
Wear-resistant, oil-resistant, refrigerant-resistant (air conditioning) Resistant to polar solvents, good deformation resistance |
|
CR |
Standard 70A Customizable 40A-90A |
Extreme temperature -40°C-120°C |
Ozone resistance, weather resistance Chemical resistance, aging resistance |
|
FVMQ |
Standard 70A Customizable 45A-70A |
Extreme temperature -60°C-177°C In dry environment, high temperature resistance can reach 232°C |
Oil resistance, acid and alkali resistance, heat resistance Cold resistance, high voltage resistance Atmospheric aging resistance, resistance to solvents |
|
FFKM |
Standard 70A Customizable 50A-90A |
Normally around 250°C Special formula can reach around 320°C-330°C |
Excellent performance Can be used in almost all harsh environments Has the same advantages as PTFE in high temperature resistance Chemical resistance, corrosion resistance, resistance to various solvents and elasticity as rubber |
|
PU |
Standard 70A Customizable 60A-90A |
Extreme temperature -40°C-90°C |
Wear-resistant, high pressure-resistant, aging-resistant, and hydrolysis-resistant |

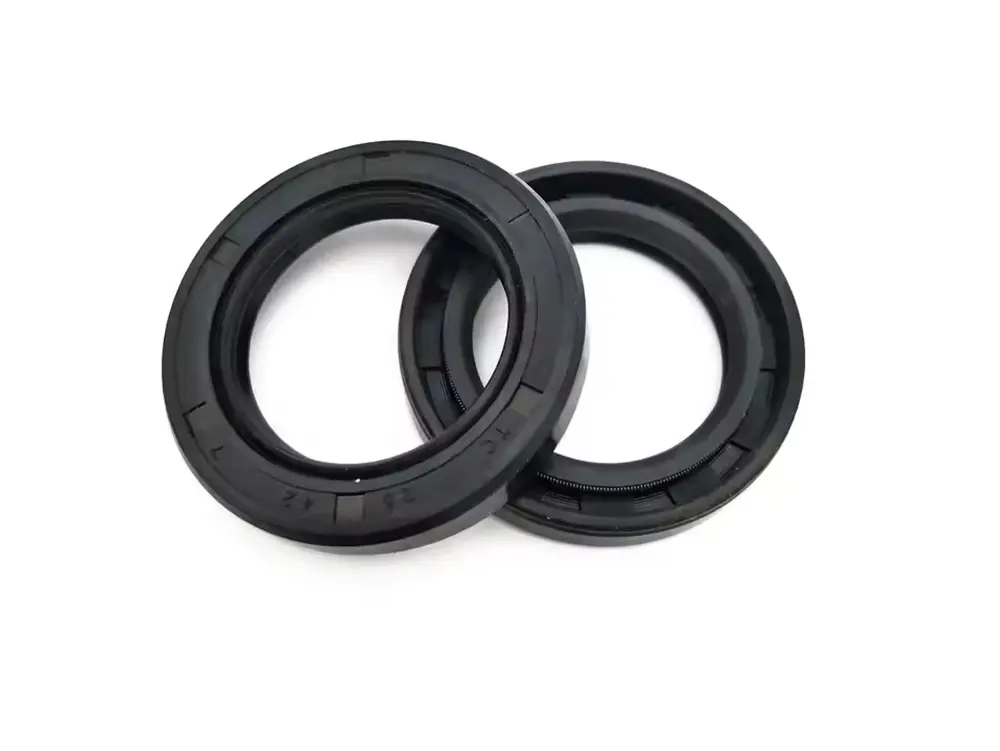

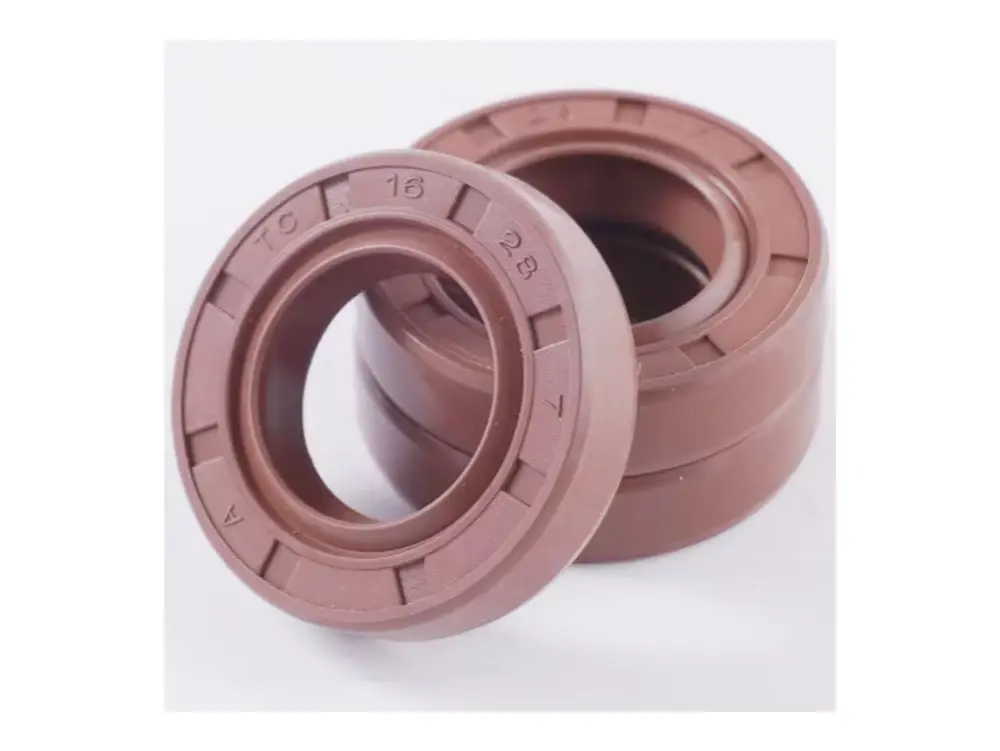

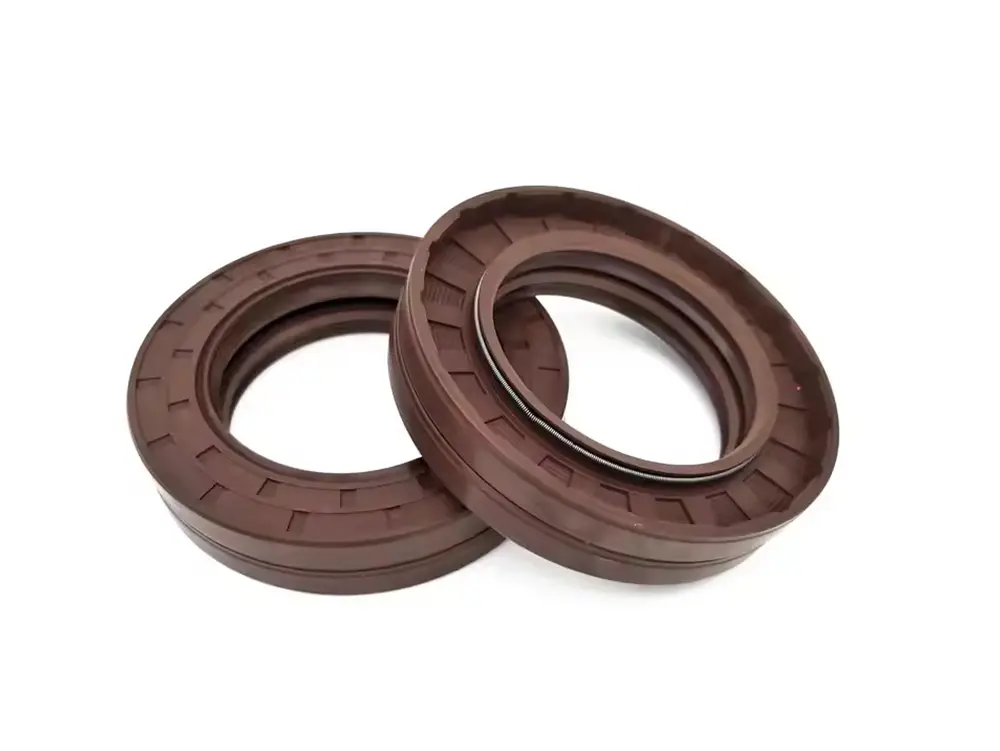

Oil seal is a common name for general seals, which simply means the seal of lubricating oil. It is a mechanical component used to seal grease (oil is the most common liquid substance in the transmission system, and also refers to general liquid substances). It isolates the parts that need lubrication from the output parts in the transmission parts to prevent the lubricating oil from leaking. The seals used for static seals and dynamic seals (generally reciprocating motion) are called oil seals.
| place of origin | Shandong,China |
| model number | Standard Oil Seal |
| Standard or Nonstandard | Standard/Customized |
| Colour | Any color is OK |
| Material Type | NBR,EPDM,SILICONE,FKM,SBR,NR,etc. |
| Size | Standard Size |
| Hardness Range | 20-90 Shore A |
| Application | For all industries |
| OEM/ODM | Available |
| Certificate | IATF16949/ISO9001/ISO14001 |
| Package | pp bag/carton |
| Single package size | 10X10X10 cm |
| Single gross weight | 0.010 kg |
Seal ring category

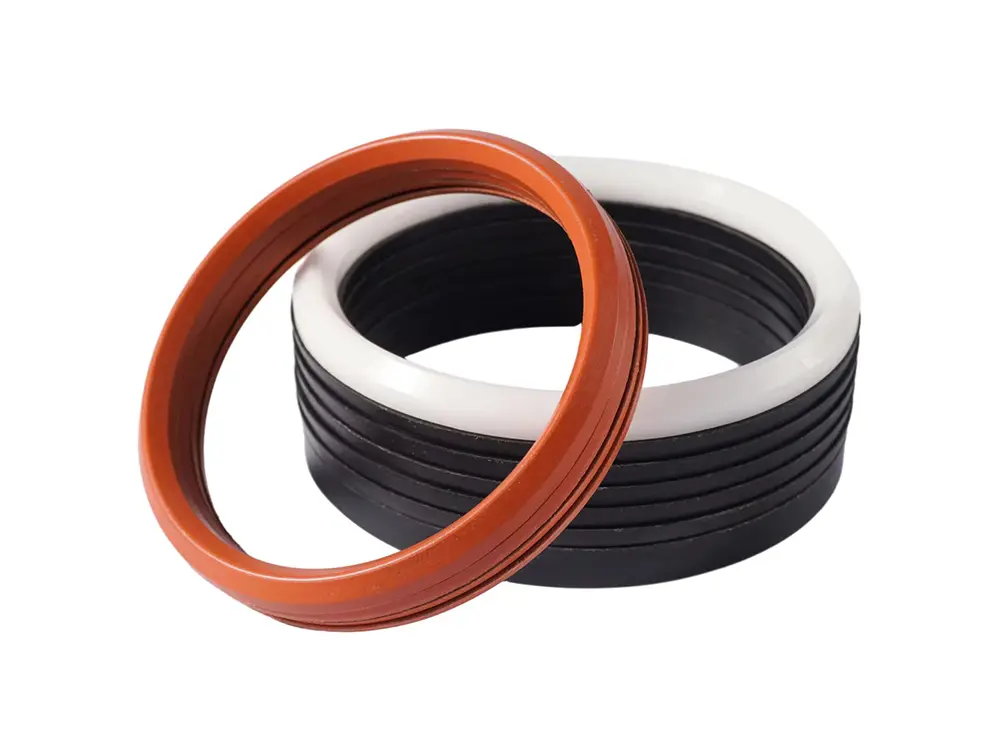

V-ring: Axially acting elastic rubber sealing ring, used as a pressure-free seal for rotating shafts, which can compensate for large tolerances and angular deviations.
U-ring: Commonly used for reciprocating seals in hydraulic systems and widely used for sealing hydraulic cylinders in engineering machinery.
O-rings: Mainly used for static sealing and reciprocating motion sealing. When used for rotary motion sealing, it is limited to low-speed rotary sealing devices.
Rectangular sealing ring: Generally installed in a groove with a rectangular cross-section on the outer circle or inner circle to perform a sealing function.
Y-type sealing ring: widely used in reciprocating sealing devices.
Z-Spring tension (spring energy storage) seal: A spring is added to the PTFE sealing material. There are O-type springs, V-type springs, U-type springs, etc. They can adapt to a wide temperature range and seal various liquids, chemicals and gases.
YX type sealing ring for holes: used for sealing the piston in reciprocating hydraulic cylinders, made of polyurethane TPU, CPU, rubber, etc.
YX-type seal ring for shaft: used to seal the piston rod in reciprocating hydraulic cylinders. The material is similar to the YX-type seal ring for holes.
Seal ring category
V-ring: Axially acting elastic rubber sealing ring, used as a pressure-free seal for rotating shafts, which can compensate for large tolerances and angular deviations.
U-ring: Commonly used for reciprocating seals in hydraulic systems and widely used for sealing hydraulic cylinders in engineering machinery.
O-rings: Mainly used for static sealing and reciprocating motion sealing. When used for rotary motion sealing, it is limited to low-speed rotary sealing devices.
Rectangular sealing ring: Generally installed in a groove with a rectangular cross-section on the outer circle or inner circle to perform a sealing function.
AA-type sealing ring: widely used in reciprocating sealing devices.
AB-Spring tension (spring energy storage) seal: A spring is added to the PTFE sealing material. There are O-type springs, V-type springs, U-type springs, etc. They can adapt to a wide temperature range and seal various liquids, chemicals and gases.
YX type sealing ring for holes: used for sealing the piston in reciprocating hydraulic cylinders, made of polyurethane TPU, CPU, rubber, etc.
YX-type seal ring for shaft: used to seal the piston rod in reciprocating hydraulic cylinders. The material is similar to the YX-type seal ring for holes.
Selection method
Consider pressure factors: V-rings, bellows seals, etc. can be selected for high-pressure environments, and O-rings can be used for low-pressure environments.
Focus on the state of motion: Y-rings, skeleton oil seals, etc. are suitable for dynamic seals, and rectangular rings can be used for static seals.
According to the medium and temperature: NBR nitrile rubber seals can be selected for contact with oil media, FKM fluorine rubber seals are suitable for high-temperature resistant scenes, and bellows seals can be used in corrosive environments.
Combined with the installation space: U-rings are more suitable for small spaces, and combined seals can be considered for complex working conditions.
Based on the accuracy requirements: Star rings are a better choice for high-precision and low-friction occasions.
Advantage
Solution
At the beginning, we will have a communication with our customers on their demand, then our engineers will work out an optimum solution based on the customers’ demand and condition.
Quality Control (Q/C)
In accordance with ISO standards, we have professional Q/C staff, precision testing instruments and internal inspection system, the quality control is implemented in every process from material receiving to products packaging to ensure our bearings quality.
Package
Standardized export packing and environment-protected packing material are used for our bearings, the custom boxes, labels, barcodes etc. can also be provided according to our customer’s request.
Logistic
Normally, our bearings will be sent to the customers by ocean transportation due to its heavy weight, airfreight, express is also available if our customers need.
Warranty
We warrant our bearings to be free from defects in material and workmanship for a 12 months period from the shipping date, this warranty is voided by non-recommended use, improper installation or physical damage.
