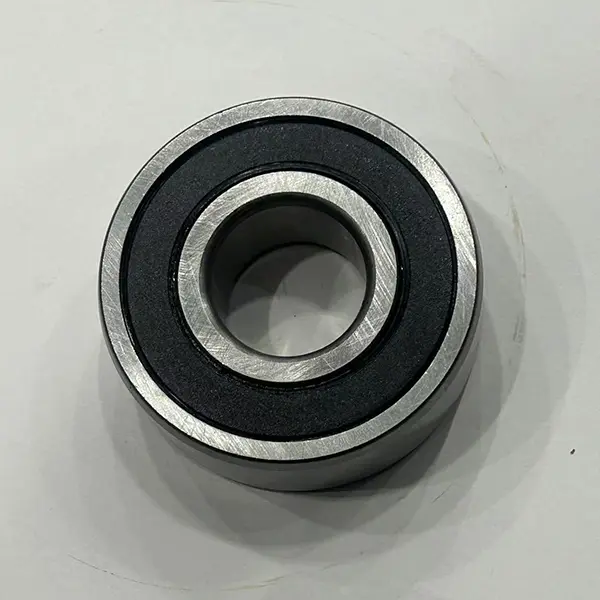

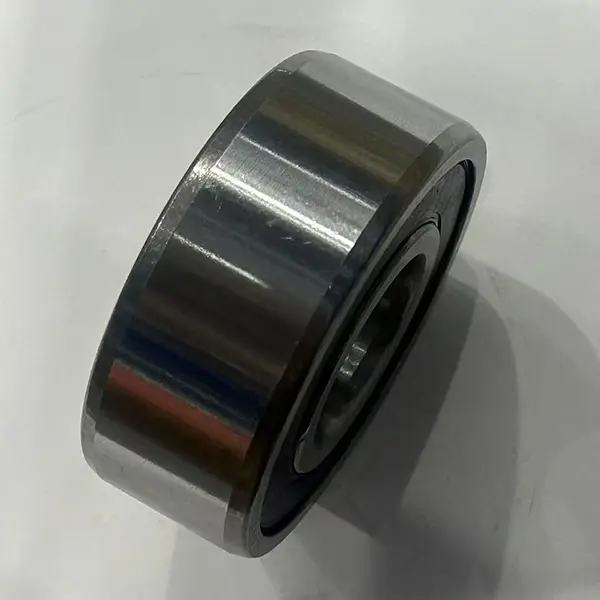

62305 Deep Groove Ball Bearing

The number of rolling elements is single row, the bearing material is bearing steel, with contact seals on both sides, the radial internal clearance is standard clearance, the cage is made of steel plate, and the net weight of the product is 0.315kg.

product details

product description

Bearing Detail

Item No.	62305 Deep Groove Ball Bearing 256217 High Precision Motor field/Gearbox/Instruments
Bearing Type	Deep groove ball bearing
Seals Type:	Open, ZZ, 2RS
Material	Chrome steel GCr15
Precision	P0,P2,P5,P6,P4
Clearance	C0,C2,C3,C4,C5
Cage type	Nitrile rubber seals on both sides (Brass, steel, nylon, etc. can be customized)
Vibration	Z1V1, Z2V2, Z3V3; Z4V4
Hardness	HRC58 - 64
Row number	Single Row
Specification	256217 mm
Weight	0.315 Kg
Basic dynamic load rating (C)	22.5kN
Basic static load rating (C0)	11.6kN
limit speed	7500r/min
Ball Bearings Feature	Long-life with high quality
	Low-noise with strict controlling the quality of JITO bearing
	High-load by the advanced high-technical design
	Competitive price, which has the most valuable
	OEM service offered, to meet the customers requirements
Application	Motor field, Gearbox, Instruments
Bearing Package	Pallet,wooden case,commercial packaging or as customers' requirement

Parameters

Structural features

Basic structure: It consists of an outer ring, an inner ring, a set of steel balls and a set of cages. It has a simple structure, and its manufacturing precision can easily reach a high level. It is convenient for mass production and has a low cost.

Sealing type: There are two types: open type and sealed type. The sealing type is further divided into dustproof seal and oilproof seal. For example, 62305-2RS indicates a deep groove ball bearing with nitrile rubber seals on both sides, which can effectively prevent dust and impurities from entering and grease from spilling out.

erformance characteristics

Load capacity: Mainly bear radial load, and can also bear certain axial load at the same time. When the radial clearance of the bearing is increased, it has certain angular contact ball bearing performance and can bear greater axial load.

Friction characteristics: The friction coefficient is small, which can reduce energy loss, improve mechanical efficiency, reduce heat and wear, and is suitable for occasions with low friction requirements.

Speed characteristics: The limit speed is high, suitable for high-speed rotating parts, and can maintain stable operating performance at high speed.

Self-aligning ability: It has certain self-aligning ability. When it is tilted 2′-10′ relative to the housing hole, it can still work normally, but it will have a certain impact on the life of the bearing.

Application field

Automotive field

＊ Engine: In the crankshaft, camshaft and other parts of the engine, 62305 bearings can be used to support the rotating shaft, reduce friction and wear, and ensure the normal operation of the engine.

＊ Transmission: Used to support the shaft parts in the transmission, it helps to achieve smooth switching and power transmission of different gears.

＊ Wheel hub: Some small cars or light trucks may use 62305 bearings in the wheel hub to bear the weight of the vehicle and various forces during driving, while ensuring the flexible rotation of the wheel hub.

Industrial machinery

＊ Motor: It is one of the commonly used bearing models in motors. It is used to support the rotor shaft of the motor to ensure that the rotor can rotate smoothly in the stator and realize the efficient conversion of electrical energy to mechanical energy.

＊ Pumps: Such as centrifugal pumps, gear pumps, etc., 62305 bearings can be used to support the pump shaft, withstand the radial and axial forces generated by the pump during operation, and ensure the normal operation of the pump.

＊ Compressor: It plays a role in supporting and reducing friction in the crankshaft, connecting rod and other parts of the compressor, which helps to improve the efficiency and reliability of the compressor.

Home appliance field

＊ Washing machine: used in the motor, dehydration barrel and other parts of the washing machine, bearing the weight and centrifugal force of the rotating parts to ensure the normal operation of the washing machine.

＊ Air conditioner: 62305 bearings may be used in the compressor, fan motor and other parts of the air conditioner to ensure the stable operation of these parts and improve the performance and service life of the air conditioner.

Other fields

＊ Power tools: such as electric drills and electric saws, 62305 bearings can be used to support motor shafts and rotating tools, withstand impact and torque during work, and ensure the efficient operation of tools.

＊ Fitness equipment: used in fitness equipment such as treadmills and spinning bikes to support rotating parts and provide a smooth exercise experience.

Textile machinery: Such as spinning equipment, etc. In the textile production process, the equipment needs to run stably at high speed. The low friction and high-speed performance of 6312 bearings can ensure the efficient operation of textile machinery.

Medical equipment: Rehabilitation and physiotherapy equipment have high requirements for bearing accuracy, stability and low noise. 6312 bearings can meet these requirements and provide guarantee for the normal operation of medical equipment.

Other fields:It can also be used in equipment such as phototypesetters, plastic packaging machinery, variable speed machines, quilting machines, etc.

Packaging & Delivery:

Packaging Details: Standard exporting packing or according to the customer's requirements

Package Type:	A. Plastic tubes Pack + Carton + Wooden Pallet
	B. Roll Pack + Carton + Wooden Pallet
	C. Individual Box +Plastic bag+ Carton + Wooden Pallet

Lead Time :
Quantity(Pieces)	1 - 300	>300
Est. Time(days)	2	To be negotiated

Deep Groove Ball Bearings Introduction:

Deep groove ball bearings mainly take radial load as well as take moderate axial load. With less coefficient of friction, high limiting speed, large size range and colorful combination of structure; they are suitable for tractor, motors, automobiles, motorcycles, and other common machinery, as a widely used type of bearings in machinery industry.

Deep groove ball bearings are suitable for high-speed or even extremely high-speed operation, and are very durable without frequent maintenance. This type of bearing has a small friction coefficient, high limit speed, and various size ranges and forms. It is used in precision instruments, low-noise motors, automobiles, motorcycles and general machinery industries. It is the most widely used type of bearing in the machinery industry. Mainly bear radial load, but also can bear a certain amount of axial load.

Deep groove ball bearing Catalogue

Bearing numbers								Boundary dimensions				Basic load ratings		Weight
Bearing numbers								mm				N		kg
	N	Z	2Z	RZ	2RZ	RS	2RS	d	D	B	r	dynamic	static	(approx.)
	N	Z	2Z	RZ	2RZ	RS	2RS	d	D	B	r	Cr	Cor	(approx.)
6003	6003N	6003-Z	6003-2Z	6003-RZ	6003-2RZ	6003-RS	6003-2RS	17	35	10	0.3	6	3.25	0.04
6004	6004N	6004-Z	6004-2Z	6004-RZ	6004-2RZ	6004-RS	6004-2RS	20	42	12	0.6	9.38	5.03	0.068
6005	6005N	6005-Z	6005-2Z	6005-RZ	6005-2RZ	6005-RS	6005-2RS	25	47	12	0.6	10.1	5.83	0.079
6006	6006N	6006-Z	6006-2Z	6006-RZ	6006-2RZ	6006-RS	6006-2RS	30	55	13	1	13.2	8.3	0.113
6007	6007N	6007-Z	6007-2Z	6007-RZ	6007-2RZ	6007-RS	6007-2RS	35	62	14	1	16.2	10.4	0.149
6008	6008N	6008-Z	6008-2Z	6008-RZ	6008-2RZ	6008-RS	6008-2RS	40	68	15	1	17	11.7	0.185
6009	6009N	6009-Z	6009-2Z	6009-RZ	6009-2RZ	6009-RS	6009-2RS	45	75	16	1	21	14.8	0.231
6010	6010N	6010-Z	6010-2Z	6010-RZ	6010-2RZ	6010-RS	6010-2RS	50	80	16	1	22	16.3	0.25
6011	6011N	6011-Z	6011-2Z	6011-RZ	6011-2RZ	6011-RS	6011-2RS	55	90	18	1	30.3	22	0.362
6012	6012N	6012-Z	6012-2Z	6012-RZ	6012-2RZ	6012-RS	6012-2RS	60	95	18	1.1	31.7	24.2	0.385
6013	6013N	6013-Z	6013-2Z	6013-RZ	6013-2RZ	6013-RS	6013-2RS	65	100	18	1.1	32	24.8	0.43
6014	6014N	6014-Z	6014-2Z	6014-RZ	6014-2RZ	6014-RS	6014-2RS	70	110	20	1.1	38.6	30.4	0.569
6015	6015N	6015-Z	6015-2Z	6015-RZ	6015-2RZ	6015-RS	6015-2RS	75	115	20	1.1	40.2	33.2	0.603
6016	6016N	6016-Z	6016-2Z	6016-RZ	6016-2RZ	6016-RS	6016-2RS	80	125	22	1.1	47.5	39.8	0.821
6017	6017N	6017-Z	6017-2Z	6017-RZ	6017-2RZ	6017-RS	6017-2RS	85	130	22	1.1	50.8	42.8	0.848
6018	6018N	6018-Z	6018-2Z	6018-RZ	6018-2RZ	6018-RS	6018-2RS	90	140	24	1.5	58	49.9	1.12
6019	6019N	6019-Z	6019-2Z	6019-RZ	6019-2RZ	6019-RS	6019-2RS	95	145	24	1.5	57.7	50	1.18
6020	6020N	6020-Z	6020-2Z	6020-RZ	6020-2RZ	6020-RS	6020-2RS	100	150	24	1.5	60.5	54	1.25
6021	6021N	6021-Z	6021-2Z	6021-RZ	6021-2RZ	6021-RS	6021-2RS	105	160	26	2	72.8	65.5	1.6
6022	6022N	6022-Z	6022-2Z	6022-RZ	6022-2RZ	6022-RS	6022-2RS	110	170	28	2	81.9	72.9	1.93
6024	6024N	6024-Z	6024-2Z	6024-RZ	6024-2RZ	6024-RS	6024-2RS	120	180	28	2	87.7	79.3	2.03
6026	6026N	6026-Z	6026-2Z	6026-RZ	6026-2RZ	6026-RS	6026-2RS	130	200	33	2	105	96.8	3.15
6028	6028N	6028-Z	6028-2Z	6028-RZ	6028-2RZ	6028-RS	6028-2RS	140	210	33	2	111	108	3.35
6030	6030N	6030-Z	6030-2Z	6030-RZ	6030-2RZ	6030-RS	6030-2RS	150	225	35	2.1	125	125	4.8
6202	6202N	6202-Z	6202-2Z	6202-RZ	6202-2RZ	6202-RS	6202-2RS	15	35	11	0.6	7.8	3.75	0.045
6203	6203N	6203-Z	6203-2Z	6203-RZ	6203-2RZ	6203-RS	6203-2RS	17	40	12	0.6	9.56	4.75	0.065
6204	6204N	6204-Z	6204-2Z	6204-RZ	6204-2RZ	6204-RS	6204-2RS	20	47	14	1	12.7	6.55	0.103
6205	6205N	6205-Z	6205-2Z	6205-RZ	6205-2RZ	6205-RS	6205-2RS	25	52	15	1	14	7.8	0.127
6206	6206N	6206-Z	6206-2Z	6206-RZ	6206-2RZ	6206-RS	6206-2RS	30	62	16	1	19.5	11.2	0.203
6207	6207N	6207-Z	6207-2Z	6207-RZ	6207-2RZ	6207-RS	6207-2RS	35	72	17	1.1	25.5	15.3	0.287
6208	6208N	6208-Z	6208-2Z	6208-RZ	6208-2RZ	6208-RS	6208-2RS	40	80	18	1.1	30.7	19	0.367
6209	6209N	6209-Z	6209-2Z	6209-RZ	6209-2RZ	6209-RS	6209-2RS	45	85	19	1.1	33.2	21.6	0.416
6210	6210N	6210-Z	6210-2Z	6210-RZ	6210-2RZ	6210-RS	6210-2RS	50	90	20	1.1	35.1	23.2	0.462
6211	6211N	6211-Z	6211-2Z	6211-RZ	6211-2RZ	6211-RS	6211-2RS	55	100	21	1.5	43.4	29.2	0.607
6212	6212N	6212-Z	6212-2Z	6212-RZ	6212-2RZ	6212-RS	6212-2RS	60	110	22	1.5	47.5	32.5	0.783
6213	6213N	6213-Z	6213-2Z	6213-RZ	6213-2RZ	6213-RS	6213-2RS	65	120	23	1.5	55.9	40.5	0.99
6214	6214N	6214-Z	6214-2Z	6214-RZ	6214-2RZ	6214-RS	6214-2RS	70	125	24	1.5	60.5	45	1.1
6215	6215N	6215-Z	6215-2Z	6215-RZ	6215-2RZ	6215-RS	6215-2RS	75	130	25	1.5	66.3	49	1.2
6216	6216N	6216-Z	6216-2Z	6216-RZ	6216-2RZ	6216-RS	6216-2RS	80	140	26	2	70.2	55	1.4
6217	6217N	6217-Z	6217-2Z	6217-RZ	6217-2RZ	6217-RS	6217-2RS	85	150	28	2	83.2	64	1.8
6218	6218N	6218-Z	6218-2Z	6218-RZ	6218-2RZ	6218-RS	6218-2RS	90	160	30	2	95.6	73.5	2.15
6219	6219N	6219-Z	6219-2Z	6219-RZ	6219-2RZ	6219-RS	6219-2RS	95	170	32	2	108	81.5	2.6
6220	6220N	6220-Z	6220-2Z	6220-RZ	6220-2RZ	6220-RS	6220-2RS	100	180	34	2.1	122	92.7	3.2
6221	6221N	6221-Z	6221-2Z	6221-RZ	6221-2RZ	6221-RS	6221-2RS	105	190	36	2.1	133	104	3.71
6222	6222N	6222-Z	6222-2Z	6222-RZ	6222-2RZ	6222-RS	6222-2RS	110	200	38	2.1	144	117	4.44
6224	6224N	6224-Z	6224-2Z	6224-RZ	6224-2RZ	6224-RS	6224-2RS	120	215	40	2.1	155	130	5.32
6226	6226N	6226-Z	6226-2Z	6226-RZ	6226-2RZ	6226-RS	6226-2RS	130	230	40	3	165	147	6.13
6228	6228N	6228-Z	6228-2Z	6228-RZ	6228-2RZ	6228-RS	6228-2RS	140	250	42	3	165	125	7.45
6230	6230N	6230-Z	6230-2Z	6230-RZ	6230-2RZ	6230-RS	6230-2RS	150	270	45	3	174	137	9.4
6302	6302N	6302-Z	6302-2Z	6302-RZ	6302-2RZ	6302-RS	6302-2RS	15	42	13	1	11.4	5.4	0.082
6303	6303N	6303-Z	6303-2Z	6303-RZ	6302-2RZ	6303-RS	6303-2RS	17	47	14	1	13.5	6.55	0.115
6304	6304N	6304-Z	6304-2Z	6304-RZ	6304-2RZ	6304-RS	6304-2RS	20	52	15	1.1	15.9	7.8	0.141
6305	6305N	6305-Z	6305-2Z	6305-RZ	6305-2RZ	6305-RS	6305-2RS	25	62	17	1.1	22.5	11.6	0.219
6306	6306N	6306-Z	6306-2Z	6306-RZ	6306-2RZ	6306-RS	6306-2RS	30	72	19	1.1	28.1	16	0.35
6307	6307N	6307-Z	6307-2Z	6307-RZ	6307-2RZ	6307-RS	6307-2RS	35	80	21	1.5	33.2	19	0.454
6308	6308N	6308-Z	6308-2Z	6308-RZ	6308-2RZ	6308-RS	6308-2RS	40	90	23	1.5	31.4	22.4	0.639
6309	6309N	6309-Z	6309-2Z	6309-RZ	6309-2RZ	6309-RS	6309-2RS	45	100	25	1.5	52.7	31.5	0.836
6310	6310N	6310-Z	6310-2Z	6310-RZ	6310-2RZ	6310-RS	6310-2RS	50	110	27	2	61.8	38	1.05
6311	6311N	6311-Z	6311-2Z	6311-RZ	6311-2RZ	6311-RS	6311-2RS	55	120	29	2	71.5	45	1.35
6312	6312N	6312-Z	6312-2Z	6312-RZ	6312-2RZ	6312-RS	6312-2RS	60	130	31	2.1	81.9	52	1.7
6313	6313N	6313-Z	6313-2Z	6313-RZ	63132-2RZ	6313-RS	6313-2RS	65	140	33	2.1	92.3	60	2.1
6314	6314N	6314-Z	6314-2Z	6314-RZ	6314-2RZ	6314-RS	6314-2RS	70	150	35	2.1	104	68	2.5
6315	6315N	6315-Z	6315-2Z	6315-RZ	6315-2RZ	6315-RS	6315-2RS	75	160	37	2.1	114	76.5	3
6316	6316N	6316-Z	6316-2Z	6316-RZ	6316-2RZ	6316-RS	6316-2RS	80	170	39	2.1	124	86.5	3.6
6317	6317N	6317-Z	6317-2Z	6317-RZ	6317-2RZ	6317-RS	6317-2RS	85	180	41	3	133	96.5	4.25
6318	6318N	6318-Z	6318-2Z	6318-RZ	6318-2RZ	6318-RS	6318-2RS	90	190	43	3	143	108	4.9
6319	6319N	6319-Z	6319-2Z	6319-RZ	6319-2RZ	6319-RS	6319-2RS	95	200	45	3	153	119	5.75
6320	6320N	6320-Z	6320-2Z	6320-RZ	6320-2RZ	6320-RS	6320-2RS	100	215	47	3	174	140	7
6321	6321N	6321-Z	6321-2Z	6321-RZ	6321-2RZ	6321-RS	6321-2RS	105	225	49	3	182	153	8.25
6322	6322N	6322-Z	6322-2Z	6322-RZ	6322-2RZ	6322-RS	6322-2RS	110	240	50	3	205	178	9.54
6324	6324N	6324-Z	6324-2Z	6324-RZ	6324-2RZ	6324-RS	6324-2RS	120	260	55	3	228	207	12.2
6326	6326N	6326-Z	6326-2Z	6326-RZ	6326-2RZ	6326-RS	6326-2RS	130	280	58	3	229	216	18
6328	6328N	6328-Z	6328-2Z	6328-RZ	6328-2RZ	6328-RS	6328-2RS	140	300	62	3	251	245	22
6405	6405N	6405-Z	6405-2Z	6405-RZ	6405-2RZ	6405-RS	6405-2RS	25	80	21	1.5	35.8	19.3	0.53
6406	6406N	6406-Z	6406-2Z	6406-RZ	6406-2RZ	6406-RS	6406-2RS	30	90	23	1.5	43.6	23.6	0.738
6407	6407N	6407-Z	6407-2Z	6407-RZ	6407-2RZ	6407-RS	6407-2RS	35	100	25	1.5	55.3	31	0.951
6408	6408N	6408-Z	6408-2Z	6408-RZ	6408-2RZ	6408-RS	6408-2RS	40	110	27	2	63.7	36.5	1.25
6409	6409N	6409-Z	6409-2Z	6409-RZ	6409-2RZ	6409-RS	6409-2RS	45	120	29	2	76.1	45	1.55
6410	6410N	6410-Z	6410-2Z	6410-RZ	6410-2RZ	6410-RS	6410-2RS	50	130	31	2.1	87.1	52	1.9
6411	6411N	6411-Z	6411-2Z	6411-RZ	6411-2RZ	6411-RS	6411-2RS	55	140	33	2.1	99.5	62	2.3
6412	6412N	6412-Z	6412-2Z	6412-RZ	6412-2RZ	6412-RS	6412-2RS	60	150	35	2.1	114	70.1	2.73
6413	6413N	6413-Z	6413-2Z	6413-RZ	6413-2RZ	6413-RS	6413-2RS	65	160	37	2.1	119	78	3.3
6414	6414N	6414-Z	6414-2Z	6414-RZ	6414-2RZ	6414-RS	6414-2RS	70	180	42	2.1	143	104	4.85
6415	6415N	6415-Z	6415-2Z	6415-RZ	6415-2RZ	6415-RS	6415-2RS	75	190	45	2.1	153	114	6.8
6416	6416N	6416-Z	6416-2Z	6416-RZ	6416-2RZ	6416-RS	6416-2RS	80	200	48	2.1	163	125	8
6417	6417N	6417-Z	6417-2Z	6417-RZ	6417-2RZ	6417-RS	6417-2RS	85	210	52	2.1	174	134	9.5
6418	6418N	6418-Z	6418-2Z	6418-RZ	6418-2RZ	6418-RS	6418-2RS	90	225	54	2.1	186	146	11.5
61905	61905N	61905-Z	61905-2Z	61905-RZ	61905-2RZ	61905-RS	61905-2RS	25	42	9	0.3	6.63	4	0.045
61906	61906N	61906-Z	61906-2Z	61906-RZ	61906-2RZ	61906-RS	61906-2RS	30	47	9	0.3	7.28	4.55	0.051
61907	61907N	61907-Z	61907-2Z	61907-RZ	61907-2RZ	61907-RS	61907-2RS	35	55	10	0.6	9.56	6.2	0.08
61908	61908N	61908-Z	61908-2Z	61908-RZ	61908-2RZ	61908-RS	61908-2RS	40	62	12	0.6	13.8	9.3	0.12
61909	61909N	61909-Z	61909-2Z	61909-RZ	61909-2RZ	61909-RS	61909-2RS	45	68	12	0.6	10.1	6.7	0.14
61910	61910N	61910-Z	61910-2Z	61910-RZ	61910-2RZ	61910-RS	61910-2RS	50	72	12	0.6	14.6	10.4	0.14
61911	61911N	61911-Z	61911-2Z	61911-RZ	61911-2RZ	61911-RS	61911-2RS	55	80	13	1	16	13.2	0.181
61912	61912N	61912-Z	61912-2Z	61912-RZ	61912-2RZ	61912-RS	61912-2RS	60	85	13	1	16.4	14.2	0.195
61913	61913N	61913-Z	61913-2Z	61913-RZ	61913-2RZ	61913-RS	61913-2RS	65	90	13	1	16	15	0.196
61914	61914N	61914-Z	61914-2Z	61914-RZ	61914-2RZ	61914-RS	61914-2RS	70	100	16	1	23.7	21.1	0.342
61915	61915N	61915-Z	61915-2Z	61915-RZ	61915-2RZ	61915-RS	61915-2RS	75	105	16	1	24.3	22.5	0.355
61916	61916N	61916-Z	61916-2Z	61916-RZ	619162-RZ	61916-RS	61916-2RS	80	110	16	1	24.9	23.9	0.375
61917	61917N	61917-Z	61917-2Z	61917-RZ	61917-2RZ	61917-RS	61917-2RS	85	120	18	1.1	31.9	29.7	0.507
61918	61918N	61918-Z	61918-2Z	61918-RZ	61918-2RZ	61918-RS	61918-2RS	90	125	18	1.1	32.8	31.5	0.533
61919	61919N	61919-Z	61919-2Z	61919-RZ	61919-2RZ	61919-RS	61919-2RS	95	130	18	1.1	33.7	33.3	0.558
61920	61920N	61920-Z	61920-2Z	61920-RZ	61920-2RZ	61920-RS	61920-2RS	100	140	20	1.1	42.7	41.9	0.774
61921	61921N	61921-Z	61921-2Z	61921-RZ	61921-2RZ	61921-RS	61921-2RS	105	145	20	1.1	43.9	44.3	0.808
61922	61922N	61922-Z	61922-2Z	61922-RZ	61922-2RZ	61922-RS	61922-2RS	110	150	20	1.1	43.6	44.4	1
61924	61924N	61924-Z	61924-2Z	61924-RZ	61924-2RZ	61924-RS	61924-2RS	120	165	22	1.1	53	53.9	1.09
61926	61926N	61926-Z	61926-2Z	61926-RZ	61926-2RZ	61926-RS	61926-2RS	130	180	24	1.5	65.1	67.2	1.5
61928	61928N	61928-Z	61928-2Z	61928-RZ	61928-2RZ	61928-RS	61928-2RS	140	190	24	1.5	66.6	71.2	1.59
61930	61930N	61930-Z	61930-2Z	61930-RZ	61930-2RZ	61930-RS	61930-2RS	150	210	28	2	84.7	90.2	2.45
61932	61932N	61932-Z	61932-2Z	61932-RZ	61932-2RZ	61932-RS	61932-2RS	160	220	28	2	86.9	95.5	2.59
61934	61934N	61934-Z	61934-2Z	61934-RZ	61934-2RZ	61934-RS	61934-2RS	170	230	28	2	88.8	100	2.73
61936	61936N	61936-Z	61936-2Z	61936-RZ	61936-2RZ	61936-RS	61936-2RS	180	250	33	2	118	133	4.06
61938	61938N	61938-Z	61938-2Z	61938-RZ	61938-2RZ	61938-RS	61938-2RS	190	260	33	2	117	133	4.22
61940	61940N	61940-Z	61940-2Z	61940-RZ	61940-2RZ	61940-RS	61940-2RS	220	300	38	2.1	152	178	6.34
61809	61809N	61809-Z	61809-2Z	61809-RZ	61809-2RZ	61809-RS	61809-2RS	45	58	7	0.3	4.65	4.32	0.04
61810	61810N	61810-Z	61810-2Z	61810-RZ	61810-2RZ	61810-RS	61810-2RS	50	65	7	0.3	6.6	6.1	0.043
61811	61811N	61811-Z	61811-2Z	61811-RZ	61811-2RZ	61811-RS	61811-2RS	55	72	9	0.3	9.1	8.4	0.07
61812	61812N	61812-Z	61812-2Z	61812-RZ	61812-2RZ	61812-RS	61812-2RS	60	78	10	0.3	9.1	8.7	0.093
61813	61813N	61813-Z	61813-2Z	61813-RZ	61813-2RZ	61813-RS	61813-2RS	65	85	10	0.6	11.9	11.5	0.13
61814	61814N	61814-Z	61814-2Z	61814-RZ	61814-2RZ	61814-RS	61814-2RS	70	90	10	0.6	12.1	11.9	0.138
61815	61815N	61815-Z	61815-2Z	61815-RZ	61815-2RZ	61815-RS	61815-2RS	75	95	10	0.6	12.5	12.8	0.147
61816	61816N	61816-Z	61816-2Z	61816-RZ	61816-2RZ	61816-RS	61816-2RS	80	100	10	0.6	12.7	13.3	0.155
61817	61817N	61817-Z	61817-2Z	61817-RZ	61817-2RZ	61817-RS	61817-2RS	85	110	13	1	19.2	19.8	0.245
61818	61818N	61818-Z	61818-2Z	61818-RZ	61818-2RZ	61818-RS	61818-2RS	90	115	13	1	19.5	20.5	0.258
61819	61819N	61819-Z	61819-2Z	61819-RZ	61819-2RZ	61819-RS	61819-2RS	95	120	13	1	19.8	21.3	0.27
61820	61820N	61820-Z	61820-2Z	61820-RZ	61820-2RZ	61820-RS	61820-2RS	100	125	13	1	20.1	22	0.303
61821	61821N	61821-Z	61821-2Z	61821-RZ	61821-2RZ	61821-RS	61821-2RS	105	130	13	1	20.3	22.7	0.312
61822	61822N	61822-Z	61822-2Z	61822-RZ	61822-2RZ	61822-RS	61822-2RS	110	140	16	1	22.5	24.5	0.509
61824	61824N	61824-Z	61824-2Z	61824-RZ	61824-2RZ	61824-RS	61824-2RS	120	150	16	1	24	28	0.529
61826	61826N	61826-Z	61826-2Z	61826-RZ	61826-2RZ	61826-RS	61826-2RS	130	165	18	1.1	24.4	28	0.775
61828	61828N	61828-Z	61828-2Z	61828-RZ	61828-2RZ	61828-RS	61828-2RS	140	175	18	1.1	39.2	46	0.784
61830	61830N	61830-Z	61830-2Z	61830-RZ	61830-2RZ	61830-RS	61830-2RS	150	190	20	1.1	49.1	57.1	1.11
61832	61832N	61832-Z	61832-2Z	61832-RZ	61832-2RZ	61832-RS	61832-2RS	160	200	20	1.1	45.2	55.1	1.18
61834	61834N	61834-Z	61834-2Z	61834-RZ	61834-2RZ	61834-RS	61834-2RS	170	215	22	1.1	51.2	63.3	1.65
61836	61836N	61836-Z	61836-2Z	61836-RZ	61836-2RZ	61836-RS	61836-2RS	180	225	22	1.1	62.3	75.9	1.62
61838	61838N	61838-Z	61838-2Z	61838-RZ	61838-2RZ	61838-RS	61838-2RS	190	240	24	1.5	75.1	91.6	2.1
61840	61840N	61840-Z	61840-2Z	61840-RZ	61840-2RZ	61840-RS	61840-2RS	200	250	24	1.5	74.2	91.2	2.18
16004	16004N	16004-Z	16004-2Z	16004-RZ	16004-2RZ	16004-RS	16004-2RS	20	42	8	0.3	7.9	4.45	0.05
16005	16005N	16005-Z	16005-2Z	16005-RZ	16005-2RZ	16005-RS	16005-2RS	25	47	8	0.3	8.42	5.15	0.06
16006	16006N	16006-Z	16006-2Z	16006-RZ	16006-2RZ	16006-RS	16006-2RS	60	55	9	0.3	11.2	6.25	0.085
16007	16007N	16007-Z	16007-2Z	16007-RZ	16007-2RZ	16007-RS	16007-2RS	35	62	9	0.3	11.5	8.8	0.1
16008	16008N	16008-Z	16008-2Z	16008-RZ	16008-2RZ	16008-RS	16008-2RS	40	68	9	0.3	12.5	10.2	0.13
16009	16009N	16009-Z	16009-2Z	16009-RZ	16009-2RZ	16009-RS	16009-2RS	45	75	10	0.6	15.6	12.2	0.155
16010	16010N	16010-Z	16010-2Z	16010-RZ	16010-2RZ	16010-RS	16010-2RS	50	80	10	0.6	16.1	13.1	0.166
16011	16011N	16011-Z	16011-2Z	16011-RZ	16011-2RZ	16011-RS	16011-2RS	55	90	11	0.6	19.4	16.2	0.207
16012	16012N	16012-Z	16012-2Z	16012-RZ	16012-2RZ	16012-RS	16012-2RS	60	95	11	0.6	19.9	17.5	0.224
16013	16013N	16013-Z	16013-2Z	16013-RZ	16013-2RZ	16013-RS	16013-2RS	65	100	11	0.6	20.5	18.6	0.241
16014	16014N	16014-Z	16014-2Z	16014-RZ	16014-2RZ	16014-RS	16014-2RS	70	110	13	0.6	27.9	25	0.386
16015	16015N	16015-Z	16015-2Z	16015-RZ	16015-2RZ	16015-RS	16015-2RS	75	115	13	0.6	28.7	26.8	0.411
16016	16016N	16016-Z	16016-2Z	16016-RZ	16016-2RZ	16016-RS	16016-2RS	80	125	14	0.6	33.1	31.4	0.539
16017	16017N	16017-Z	16017-2Z	16017-RZ	16017-2RZ	16017-RS	16017-2RS	85	130	14	0.6	34	33.3	0.568
16018	16018N	16018-Z	16018-2Z	16018-RZ	16018-2RZ	16018-RS	16018-2RS	90	140	16	1	41.5	39.3	0.671
16019	16019N	16019-Z	16019-2Z	16019-RZ	16019-2RZ	16019-RS	16019-2RS	95	145	16	1	42.7	41.9	0.709
16020	16020N	16020-Z	16020-2Z	16020-RZ	16020-2RZ	16020-RS	16020-2RS	100	150	16	1	43.8	44.3	0.744
16021	16021N	16021-Z	16021-2Z	16021-RZ	16021-2RZ	16021-RS	16021-2RS	105	160	18	1	51.8	50.6	1
16022	16022N	16022-Z	16022-2Z	16022-RZ	16022-2RZ	16022-RS	16022-2RS	110	170	19	1	57.4	56.7	1.27
16024	16024N	16024-Z	16024-2Z	16024-RZ	16024-2RZ	16024-RS	16024-2RS	120	180	19	1	58.8	60.4	1.37
16026	16026N	16026-Z	16026-2Z	16026-RZ	16026-2RZ	16026-RS	16026-2RS	130	200	22	1.1	79.7	79.2	1.87
16028	16028N	16028-Z	16028-2Z	16028-RZ	16028-2RZ	16028-RS	16028-2RS	140	210	22	1.1	82.1	85	2
16030	16030N	16030-Z	16030-2Z	16030-RZ	16030-2RZ	16030-RS	16030-2RS	150	225	24	1.1	91.9	98.5	2.64
62/28								28	58	16	1	17.9	9.78	0.174
63/22								22	56	16	1.1	18.4	9.25	0.174
63/28								28	68	18	1.1	26.8	14	0.297
62203	62203N	62203-Z	62203-2Z	62203-RZ	62203-2RZ	62203-RS	62203-2RS	17	40	16	0.6	7.36	4.48	0.086
62204	62204N	62204-Z	62204-2Z	62204-RZ	62204-2RZ	62204-RS	62204-2RS	20	47	18	1	9.88	6.22	0.134
62205	62205N	62205-Z	62205-2Z	62205-RZ	62205-2RZ	62205-RS	62205-2RS	25	52	18	1	14	7.8	0.146
62206	62206N	62206-Z	62206-2Z	62206-RZ	62206-2RZ	62206-RS	62206-2RS	30	62	20	1	19.5	11.2	0.249
62207	62207N	62207-Z	62207-2Z	62207-RZ	62207-2RZ	62207-RS	62207-2RS	35	72	23	1.1	25.7	15.3	0.381
62208	62208N	62208-Z	62208-2Z	62208-RZ	62208-2RZ	62208-RS	62208-2RS	40	80	23	1.1	30.7	19	0.45
62209	62209N	62209-Z	62209-2Z	62209-RZ	62209-2RZ	62209-RS	62209-2RS	45	85	23	1.1	33.2	21.6	0.485
62210	62210N	62210-Z	62210-2Z	62210-RZ	62210-2RZ	62210-RS	62210-2RS	50	90	23	1.1	35.1	23.2	0.535
62211	62211N	62211-Z	62211-2Z	62211-RZ	62211-2RZ	62211-RS	62211-2RS	55	100	25	1.5	43.4	29.2	0.68
62212	62212N	62212-Z	62212-2Z	62212-RZ	62212-2RZ	62212-RS	62212-2RS	60	110	28	1.5	47.5	32.5	1.01
62213	62213N	62213-Z	62213-2Z	62213-RZ	62213-2RZ	62213-RS	62213-2RS	65	120	31	1.5	55.9	40.5	1.28
62214	62214N	62214-Z	62214-2Z	62214-RZ	62214-2RZ	62214-RS	62214-2RS	70	130	31	1.5	60.5	45	1.4
62304	62304N	62304-Z	62304-2Z	62304-RZ	62304-2RZ	62304-RS	62304-2RS	20	52	21	1.1	12.3	7.81	0.197
62305	62305N	62305-Z	62305-2Z	62305-RZ	62305-2RZ	62305-RS	62305-2RS	25	62	24	1.1	22.4	11.5	0.302
62306	62306N	62306-Z	62306-2Z	62306-RZ	62306-2RZ	62306-RS	62306-2RS	30	72	27	1.1	27	15.2	0.489
62307	62307N	62307-Z	62307-2Z	62307-RZ	62307-2RZ	62307-RS	62307-2RS	35	80	31	1.5	33.5	18.3	0.614
62308	62308N	62308-Z	62308-2Z	62308-RZ	62308-2RZ	62308-RS	62308-2RS	40	90	33	1.5	31.4	22.4	0.843
62309	62309N	62309-Z	62309-2Z	62309-RZ	62309-2RZ	62309-RS	62309-2RS	45	100	36	1.5	37.2	26.3	1.11
62310	62310N	62310-Z	62310-2Z	62310-RZ	62310-2RZ	62310-RS	62310-2RS	50	110	40	2	47.6	35.7	1.47
62311	62311N	62311-Z	62311-2Z	62311-RZ	62311-2RZ	62311-RS	62311-2RS	55	120	43	2	71.5	45	1.95
62312	62312N	62312-Z	62312-2Z	62312-RZ	62312-2RZ	62312-RS	62312-2RS	60	130	46	2.1	81.8	51.9	2.5
62313	62313N	62313-Z	62313-2Z	62313-RZ	62313-2RZ	62313-RS	62313-2RS	65	140	48	2.1	92.3	60	2.94
62314	62314N	62314-Z	62314-2Z	62314-RZ	62314-2RZ	62314-RS	62314-2RS	70	150	51	2.1	104	68	3.58
