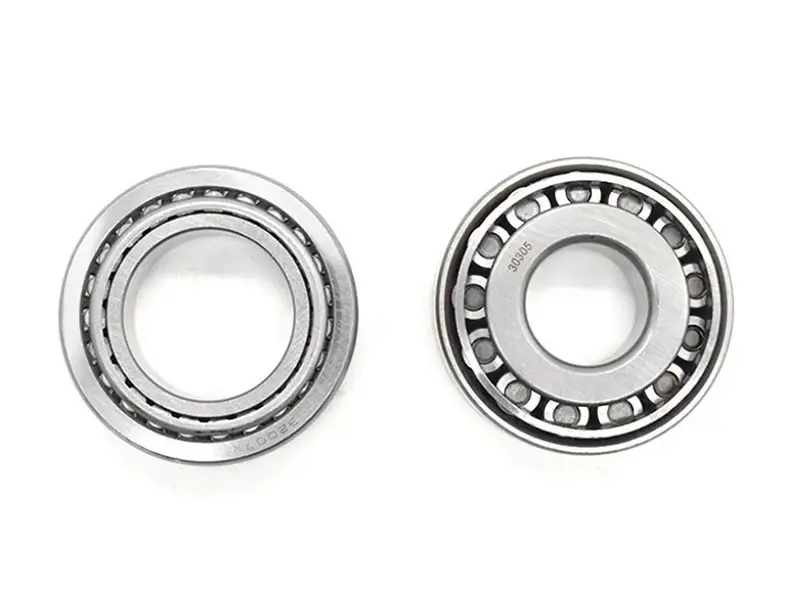

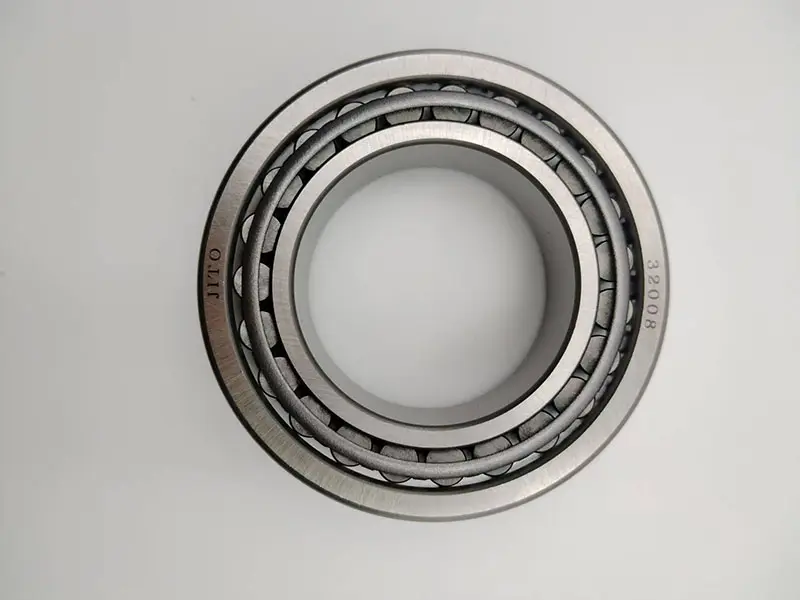

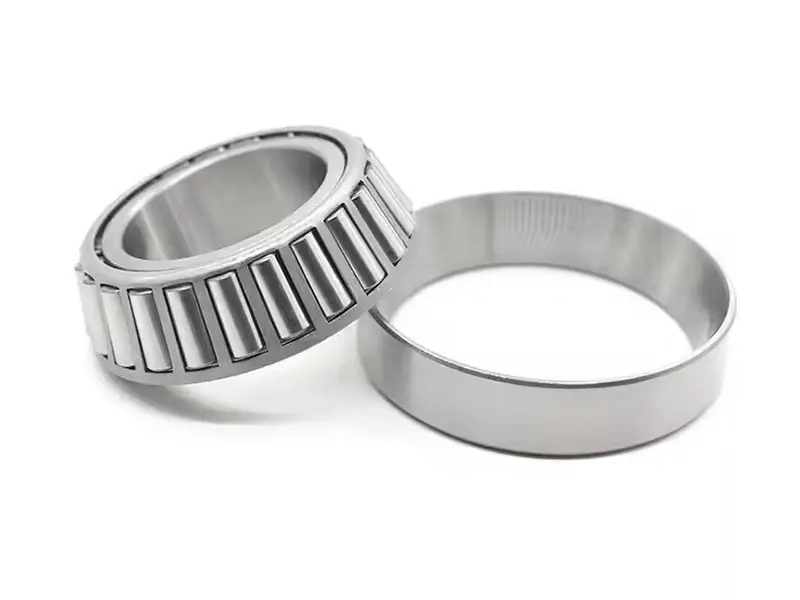

32008 Taper roller bearing (Metric) (2).jpg

32008 Taper roller bearing (Metric) (1).jpg

32008 Taper roller bearing (Metric) (3).jpg

32008 Taper Roller Bearing Metric JITO China Supplier/Manufacturer 406819 Automotive/Agriculture Machinery

Strong bearing capacity: Mainly bears radial and axial combined loads dominated by radial loads, and generally does not bear axial loads alone.

Separable installation: The inner and outer rings can be installed separately, and the axial clearance and radial clearance can be adjusted during the installation process, or pre-interference installation can be performed.

product details

product description

Bearing Detail

Item No.	32008 (Metric)
Bearing Type	Taper roller bearing (Metric)
Material	Chrome steel GCr15
Specification	406819
Precision	P0,P2,P5,P6,P4
Inner Ring Width	19 mm
Outer Ring width	14.5 mm
Contact angle	14.167°
Basic rated dynamic load	49.5kN
Basic rated static load	67kN
Reference speed	7000r/min
Limiting speed	9500r/min
Clearance	C0,C2,C3,C4,C5
Brand	JITO or OEM
Separable	Yes
Ball Bearings Feature	Long-life with high quality
	Low-noise with strict controlling the quality of JITO bearing
	High-load by the advanced high-technical design
	Competitive price, which has the most valuable
	OEM service offered, to meet the customers requirements
Application	Automobiles, rolling mills, mining, metallurgy, plastic machinery and other industries
Bearing Package	Pallet,wooden case,commercial packaging or as customers' requirement

Bearing Characteristics

Strong bearing capacity: Mainly bears radial and axial combined loads dominated by radial loads, and generally does not bear axial loads alone.

Separable installation: The inner and outer rings can be installed separately, and the axial clearance and radial clearance can be adjusted during the installation process, or pre-interference installation can be performed.

Axial displacement limit: It can limit the axial displacement of the shaft or the housing, and does not allow the shaft to be tilted relative to the housing or the hole.

Clearance affects life: The size of the axial clearance of the tapered roller bearing directly affects the service life of the bearing.

Application areas

Machine tool industry: Used in the spindle, feed shaft and other parts of the machine tool, bearing cutting force and rotation load, ensuring the accuracy and stability of the machine tool.

Automotive industry: Applied to the wheel hub, differential, transmission and other parts of the car, supporting the rotation of the wheel, transmitting power and torque.

Reducer industry: Supporting the gear shaft in the reducer, bearing the radial and axial forces generated during gear transmission, and ensuring the normal operation of the reducer.

Mining machinery: In equipment such as crushers and ball mills, tapered roller bearings are used to support rotating parts and bear huge impact loads and radial loads.

Metallurgical industry: In various equipment of rolling mills and steel mills, it is used to withstand rolling force and axial force to ensure stable operation of the equipment.

Related 30300 Series Tapered Roller Bearings Catalogue

Bearing numbers	Boundary dimensions								Basic load ratings		Limiting speeds		Weight
Bearing numbers	mm								N		r/min		kg
	d	D	T	B	C	r	r1	r2	dynamic	static	grease	oil	(approx)
	d	D	T	B	C	r	r1	r2	Cr	Cor	grease	oil	(approx)
30202	15	35	11.75	11	10	0.6	0.6	0.15	14000	13000	11000	15000	0.053
30302	15	42	14.25	13	11	1	1	0.3	23000	20000	9900	13000	0.098
30203	17	40	13.25	12	11	1	1	0.3	20000	20000	9900	13000	0.08
32203		40	17.25	16	14	1	1	0.3	26000	22000	9900	13000	0.108
30303		47	15.25	14	12	1	1	0.3	28000	26000	9000	12000	0.134
32303		47	20.25	16	14	1	1	0.3	27000	28000	9900	13000	0.102
32004	20	42	15	15	12	0.6	0.6	0.15	27000	24000	9500	13000	0.097
30204		47	15.25	14	12	1	1	0.3	29000	28000	8800	12000	0.127
32204		47	19.25	18	15	1	1	0.3	39000	36000	8800	12000	0.16
30304		52	16.25	15	13	1.5	1.5	0.6	35000	34000	8000	11000	0.169
32304		52	22.25	21	18	1.5	1.5	0.6	48000	46000	8000	11000	0.245
320/22	22	44	15	15	12	0.6	0.6	0.15	33000	28000	9000	12000	0.108
302/22		50	15.25	14	12	1	1	0.3	27000	26000	8100	11000	0.141
322/22		50	19.25	18	15	1	1	0.3	41000	36000	8100	11000	0.172
303/22		56	17.25	16	14	1.5	1.5	0.6	36000	34000	7700	10000	0.209
323/22		56	22.25	21	18	1.5	1.5	0.6	45000	43000	7600	10000	0.263
32005	25	47	15	15	12	0.6	0.6	0.15	33000	27000	7900	11000	0.114
33005		47	17	17	14	0.6	0.6	0.15	38000	31000	8000	11000	0.131
30205		52	16.25	15	13	1	1	0.3	34000	31000	7300	9800	0.154
32205		52	19.25	18	16	1	1	0.3	42000	37000	7300	9800	0.154
33205		52	22	22	18	1	1	0.3	47000	43000	7300	9800	0.217
30305		62	18.25	17	15	1.5	1.5	0.6	48000	45000	6700	8900	0.272
31305		62	18.25	17	13	1.5	1.5	0.6	38000	36000	7500	11000	0.26
32305		62	25.25	24	20	1.5	1.5	0.6	61000	57000	6700	8900	0.381
320/28	28	52	16	16	12	1	1	0.3	36000	33000	7500	10000	0.146
302/28		58	17.25	16	14	1	1	0.3	35000	33000	7000	9000	0.204
322/28		58	20.25	19	16	1	1	0.3	44000	40000	6900	9300	0.236
303/28		68	19.75	18	16	1.5	1.5	0.6	46000	44000	6000	8000	0.333
323/28		68	25.75	24	21	1.5	1.5	0.6	64000	60000	6000	8000	0.453
32906	30	47	12	12	9	0.6	0.6	0.15	24000	17000	7500	10000	0.073
32006		55	17	17	13	1	1	0.3	45000	36000	6900	9200	0.166
33006		55	20	20	16	1	1	0.3	50000	46000	6700	9000	0.208
30206		62	17.25	16	14	1	1	0.3	48000	43000	6300	8400	0.241
32206		62	21.25	20	17	1	1	0.3	64000	54000	6300	8400	0.241
33206		62	25	25	20	1	1	0.3	75000	64000	6300	84	0.344
30306		72	20.75	19	16	1.5	1.5	0.6	60000	58000	5700	7600	0.408
31306		72	20.75	19	16	1.5	1.5	0.6	57000	47000	6700	9500	0.39
32306		72	28.75	27	23	1.5	1.5	0.6	80000	72000	7000	10000	0.55
320/32	32	58	17	17	13	1	1	0.3	45000	36000	6500	8500	0.191
302/32		65	18.25	17	15	1	1	0.3	40000	38000	6200	8200	0.258
322/32		65	22.25	21	18	1	1	0.3	50000	46000	6200	8200	0.33
332/32		65	26	26	21	1	1	0.3	71000	62000	6200	8300	0.404
303/32		75	21.75	20	18	1.5	1.5	0.6	58000	54000	5500	7000	0.445
323/32		75	29.75	28	25	1.5	1.5	0.6	98000	86000	5500	7200	0.65
32907	35	55	14	14	12	0.6	0.6	0.15	39000	27000	6300	8500	0.123
32007		62	18	18	14	1	1	0.3	50000	41000	6100	8100	0.224
33007		62	21	21	17	1	1	0.3	63000	51000	5600	8000	0.267
30207		72	18.25	17	15	1.5	1.5	0.6	61000	55000	5500	7400	0.344
32207		72	24.25	23	19	1.5	1.5	0.6	85000	70000	5500	7400	0.457
33207		72	28	28	22	1.5	1.5	0.6	100000	85000	5500	7400	0.461
30307		80	22.75	21	18	2	1.5	0.6	75000	71000	5000	6600	0.54
31307		80	22.75	21	15	2	1.5	0.6	61000	56000	6000	8500	0.52
32307		80	32.75	31	25	2	1.5	0.6	11000	94000	6000	8500	0.8
32908	40	62	15	15	12	0.6	0.6	0.15	34000	47000	5600	7500	0.161
32008		68	19	19	15	1	1	0.3	50000	65000	5300	7100	0.273
33008		68	22	22	18	1	1	0.3	59000	82000	5300	7100	0.312
33108		75	26	26	21	1.5	1.5	0.6	79000	103000	5200	6900	0.494
30208		80	19.75	18	16	1.5	1.5	0.6	61000	67000	4900	6600	0.435
32208		80	24.75	23	19	1.5	1.5	0.6	79000	93000	4900	6600	0.558
33208		80	32	32	25	1.5	1.5	0.6	103000	132000	4900	6600	0.728
30308		90	25.25	23	20	2	1.5	0.6	91000	102000	4400	5900	0.769
31308		90	25.25	23	17	2	1.5	0.6	81000	95000	5600	7500	0.72
32308		90	35.25	33	27	2	1.5	0.6	110000	140000	4200	5600	1.08
32909	45	68	15	15	12	0.6	0.6	0.15	34000	50500	5000	6700	0.187
32009		75	20	20	16	1	1	0.3	57000	76000	4800	6400	0.346
33009		75	24	24	19	1	1	0.3	66000	93000	4800	6400	0.398
33109		80	26	26	21	1.5	1.5	0.6	84000	115000	4700	6200	0.542
30209		85	20.75	19	16	1.5	1.5	0.6	67000	78000	4400	5900	0.495
32209		85	24.75	23	19	1.5	1.5	0.6	82000	100000	4400	5900	0.607
33209		85	32	32	25	1.5	1.5	0.6	100000	140000	4400	5900	0.783
30309		100	27.25	25	22	2	1.5	0.6	110000	126000	4000	5300	1.01
31309		100	27.25	25	18	2	1.5	0.6	100000	125000	5000	6700	0.95
32309		100	38.25	36	30	2	1.5	0.6	150000	191000	4000	5300	1.46
32910	50	72	15	15	12	0.6	0.6	0.15	35000	57000	4700	6300	0.191
32010		80	20	20	16	1	1	0.3	62000	88000	4400	5800	0.366
33010		80	24	24	19	1	1	0.3	69000	103000	4400	5800	0.433
33110		85	26	26	20	1.5	1.5	0.6	86000	121000	4200	5600	0.58
30210		90	21.75	20	17	1.5	1.5	0.6	77000	93000	4000	5300	0.563
32210		90	24.75	23	19	1.5	1.5	0.6	87000	109000	4000	5300	0.648
33210		90	32	32	25	1.5	1.5	0.6	110000	158000	4000	5300	0.852
30310		110	29.25	27	23	2.5	2	0.6	130000	152000	3600	4800	1.31
31310		110	29.25	27	19	2.5	2	0.6	120000	143000	4500	6000	1.2
32310		110	42.25	40	33	2.5	2	0.6	180000	232000	3600	4800	1.92
32911	55	80	17	17	14	1	1	0.3	440000	73000	4300	5700	0.274
32011		90	23	23	18	1.5	1.5	0.6	80000	118000	4000	54000	0.563
33011		90	27	27	21	1.5	1.5	0.6	91000	138000	4000	5400	0.643
33111		95	30	30	23	1.5	1.5	0.6	110000	155000	3900	5200	0.846
30211		100	22.75	21	18	2	1.5	0.6	93000	111000	3600	4900	0.74
32211		100	26.75	25	21	2	1.5	0.6	108000	134000	3600	4900	0.876
33211		100	35	35	27	2	1.5	0.6	130000	188000	3600	4900	1.15
30311		120	31.5	29	25	2.5	2	0.6	150000	179000	3300	4400	1.66
31311		120	31.5	29	25	2.5	2	0.6	120000	166000	3800	5600	1.55
32311		120	45.5	43	35	2.5	2	0.6	210000	275000	3300	4400	2.44
32912	60	85	17	17	14	1	1	0.3	46000	78000	4000	5300	0.294
32012		95	23	23	18	1.5	1.5	0.6	82000	123000	37000	49000	0.576
33012		95	27	27	21	1.5	1.5	0.6	93000	145000	3700	4900	0.684
33112		100	30	30	23	1.5	1.5	0.6	110000	164000	3600	4700	0.912
30212		110	23.75	22	19	2	1.5	0.6	105000	125000	3400	4500	0.949
32212		110	29.75	28	24	2	1.5	0.6	130000	164000	3400	4500	1.18
33212		110	38	38	29	2	1.5	0.6	160000	234000	3400	4500	1.55
30312		130	33.5	31	22	3	2.5	1	180000	210000	3000	4000	2.06
31312		130	33.5	31	22	3	2.5	1	145000	166000	3600	5300	1.9
32312		130	48.5	46	37	3	2.5	1	244000	315000	3000	4000	3.02
32913	65	90	17	17	14	1	1	0.3	48000	85000	3700	4900	0.315
32013		100	23	23	18	1.5	1.5	0.6	83000	128000	3400	4600	0.63
33013		100	27	27	21	1.5	1.5	0.6	97000	156000	3400	4600	0.732
33113		110	34	34	27	1.5	1.5	0.6	144000	211000	3300	4400	1.28
30213		120	24.75	23	20	2	1.5	0.6	123000	148000	3100	4200	1.18
32213		120	32.75	31	27	2	1.5	0.6	159000	206000	3100	4200	1.58
33213		120	41	41	32	2	1.5	0.6	195000	265000	3100	4200	1.98
30313		140	36	33	28	3	2.5	1	203000	238000	2800	3700	2.55
31313		140	36	33	28	3	2.5	1	165000	193000	3200	4800	2.35
32313		140	51	48	39	3	2.5	1	273000	350000	2800	3700	3.66
32914	70	100	20	20	16	1	1	0.3	68000	265000	3400	4600	0.487
32014		110	25	25	19	1.5	1.5	0.6	105000	160000	3200	4200	0.848
33014		110	31	31	26	1.5	1.5	0.6	127000	204000	3200	4200	1.07
33114		120	37	37	29	2	1.5	0.6	172000	250000	4000	5300	1.7
30214		125	26.25	24	21	2	1.5	0.6	131000	162000	2900	3900	1.26
32214		125	33.25	31	27	2	1.5	0.6	166000	220000	2900	3900	1.68
33214		125	41	41	32	2	1.5	0.6	201000	282000	2900	3900	2.1
30314		150	38	35	30	3	2.5	1	230000	272000	2600	3500	3.06
31314		150	38	35	25	3	2.5	1	187000	220000	3000	4500	2.95
32314		150	54	51	42	3	2.5	1	310000	405000	2600	3500	4.46
32915	75	105	20	20	16	1	1	0.3	69000	114000	3200	4300	0.511
32015		115	25	25	19	1.5	1.5	0.6	106000	167000	3000	4000	0.909
33015		115	31	31	26	1.5	1.5	0.6	129000	212000	3000	4000	1.13
33115		125	37	37	29	2	1.5	0.6	176000	265000	3800	5000	1.8
30215		130	27.25	25	22	2	1.5	0.6	139000	175000	2700	3600	1.41
32215		130	33.25	31	27	2	1.5	0.6	168000	224000	2700	3600	2.2
33215		130	41	41	31	2	1.5	0.6	208000	298000	2700	3600	2.2
30315		140	40	37	31	3	2.5	1	255000	305000	2400	3200	3.57
31315		160	40	37	26	3	2.5	1	209000	245000	2800	4300	3.5
32315		160	58	55	45	3	2.5	1	355000	470000	2400	3200	5.35
32916	80	110	20	20	16	1	1	0.3	72000	121000	3000	4000	0.54
32016		125	29	29	22	1.5	1.5	0.6	139000	216000	2800	3700	1.28
33016		125	36	36	30	1.5	1.5	0.6	173000	284000	2800	3700	1.6
33116		130	37	37	29	2	1.5	0.6	179000	287000	3000	4200	1.9
30216		140	28.25	26	22	2	1.5	0.6	160000	200000	2500	3400	1.72
32216		140	35.25	33	28	2	1.5	0.6	199000	265000	2500	3400	2.18
33216		140	46	46	35	2	1.5	0.6	250000	365000	2500	3400	2.92
30316		170	42.5	39	33	3	2.5	1	291000	350000	2300	3000	4.41
31316		170	42.5	39	27	3	2.5	1	270000	320000	3000	4300	4.1
32316		170	61.5	58	48	3	2.5	1	395000	525000	2300	3000	6.41
32917	85	120	23	23	18	1.5	1.5	0.6	94000	157000	2800	3800	0.773
32017		130	29	29	22	1.5	1.5	0.6	142000	224000	2600	3500	1.35
33017		130	36	36	30	1.5	1.5	0.6	176000	296000	2600	3500	1.7
33117		140	41	41	32	2.5	2	0.6	220000	340000	3400	4500	2.45
30217		150	30.5	28	24	2.5	2	0.6	183000	232000	2400	3200	2.14
32217		150	38.5	36	30	2.5	2	0.6	224000	300000	2400	3200	2.75
33217		150	49	49	37	2.5	2	0.6	284000	420000	2400	3200	3.58
30317		180	44.5	41	28	4	3	1	247000	293000	2100	2900	5.2
31317		180	44.5	41	28	4	3	1	242000	285000	2600	3800	4.6
32317		180	63.5	60	49	4	3	1	405000	525000	2100	2900	7.15
32918	90	125	23	23	18	1.5	1.5	0.6	97500	168000	2700	3600	0.817
32018		140	32	32	24	2	1.5	0.6	168000	270000	2500	3300	1.79
33018		140	39	39	33	2	1.5	0.6	215000	360000	2500	3300	2.18
33118		150	45	45	35	2	1.5	0.6	251000	390000	3000	4300	3.1
30218		160	32.5	30	26	2.5	2	0.6	208000	267000	2200	3000	2.66
32218		160	42.5	40	34	2.5	2	0.6	262000	360000	2200	3000	3.49
30318		190	46.5	43	36	4	3	1	335000	405000	2000	2700	6.03
31318		190	46.5	43	30	4	3	1	264000	315000	2400	3400	5.9
32318		190	67.5	64	53	4	3	1	450000	595000	2000	2700	8.57
32919	95	130	23	23	18	1.5	1.5	0.6	101000	178000	2500	3400	0.851
32019		145	32	32	24	2	1.5	0.6	171000	280000	2300	3100	1.83
33019		145	39	39	33	2	1.5	0.6	219000	375000	2300	3100	2.27
33119		160	49	49	38	2.5	2	0.6	304000	473000	2300	3100	3.89
30219		170	34.5	32	27	3	2.5	1	226000	290000	210	280	3.07
32219		170	45.5	43	37	3	2.5	1	299000	415000	2100	2800	4.3
33219		170	58	58	44	3	2.5	1	374000	560000	2000	3000	5.5
30319		200	49.5	45	38	4	3	1	315000	365000	1900	2500	6.98
31319		200	49.5	45	38	4	3	1	292000	355000	2400	3400	6.95
32319		200	71.5	67	55	4	3	1	505000	670000	1900	2500	10.1
32920	100	140	25	25	20	1.5	1.5	0.6	121000	206000	2400	3200	1.14
32020		150	32	32	24	2	1.5	0.6	170000	281000	2200	3000	1.91
33020		150	39	39	33	2	1.5	0.6	224000	390000	2200	3000	2.37
33120		165	52	52	40	2.5	2	0.6	320000	520000	2000	3000	4.29
30220		180	37	34	29	3	2.5	1	258000	335000	2000	2700	3.78
32220		180	49	46	39	3	2.5	1	330000	465000	2000	2700	5.12
33220		180	63	63	48	3	2.5	1	429000	655000	2000	3000	6.95
30320		215	51.5	47	39	4	3	1	410000	500000	1800	2400	8.56
31320		215	56.5	51	35	4	3	1	355000	435000	1800	2400	8.67
32320		215	77.5	73	60	4	3	1	570000	770000	1800	2400	12.7
32921	105	145	25	25	20	1.5	1.5	0.6	126000	219000	2300	3000	1.2
32021		160	35	35	26	2.5	2	0.6	201000	335000	2100	2800	2.42
33021		160	43	43	34	2.5	2	0.6	245000	420000	2100	2800	3
33121		175	56	56	61	2.5	2	0.6	310000	560000	2000	26000	4.3
30221		190	39	36	30	3	2.5	1	287000	380000	1900	2500	4.39
32221		190	53	50	43	3	2.5	1	380000	540000	1900	2500	6.25
33221		190	68	68	52	3	2.5	1	480000	720000	2000	2600	8.4
30321		225	53.5	49	41	4	3	1	435000	530000	1700	2300	9.79
31321		225	58	53	36	4	3	1	380000	470000	1700	2300	9.68
32321		225	81.5	77	63	4	3	1	610000	825000	1700	2300	14.5
32922	110	150	25	25	20	1.5	1.5	0.6	127000	226000	2200	2900	1.24
32022		170	38	38	29	2.5	2	0.6	236000	390000	2000	2700	3.07
33022		170	47	47	37	2.5	2	0.6	288000	500000	2000	2700	3.8
33122		180	56	56	43	2.5	2	0.6	369000	630000	2000	2600	5.55
30222		200	41	38	32	3	2.5	1	325000	435000	1800	2400	5.18
32222		200	56	53	46	3	2.5	1	420000	605000	1800	2400	7.43
30322		240	54.5	50	42	4	3	1	480000	590000	1600	2200	11.4
31322		240	63	57	38	4	3	1	430000	535000	1600	2200	11.9
32322		240	84.5	80	65	4	3	1	705000	970000	1600	2200	18
32924	120	165	29	29	23	1.5	1.5	0.6	162000	294000	2000	26000	1.77
32024		180	38	38	29	2.5	2	0.6	245000	420000	1800	2500	3.25
33024		180	48	48	38	2.5	2	0.6	292000	540000	2600	3400	4.2
33124		200	62	62	48	2.5	2	0.6	450000	720000	1800	2400	7.7
30224		215	43.5	40	34	3	2.5	1	345000	470000	1700	2200	6.23
32224		215	61.5	58	50	3	2.5	1	460000	680000	1700	2200	9.08
30324		260	59.5	55	46	4	3	1	560000	695000	1500	2000	14.2
31324		260	68	62	42	4	3	1	515000	655000	1500	2000	15.4
32324		260	90.5	86	69	4	3	1	815000	1130000	1500	2000	22.4
32926	130	180	32	32	25	2	1.5	0.6	194000	350000	1800	2400	2.36
32026		200	45	45	34	2.5	2	0.6	320000	545000	1700	2200	4.96
33026		200	55	55	43	2.5	2	0.6	360000	680000	1500	2000	6.19
30226		230	43.75	40	34	4	3	1	375000	505000	1500	2000	7.25
32226		230	67.75	64	54	4	3	1	530000	815000	1500	2000	11.2
30326		280	63.75	58	49	5	4	1.5	650000	830000	1400	1800	17.4
31326		280	72	66	44	5	4	1.5	600000	780000	1400	1800	19
32326		280	98.75	93	78	5	4	1.5	830000	1120000	1700	2600	28.9
32928	140	190	32	32	25	2	1.5	0.6	200000	375000	1700	2200	2.51
32028		210	45	45	34	2.5	2	0.6	330000	580000	1600	2100	5.28
33028		210	56	56	44	2.5	2	0.6	390000	680000	1500	2000	6.6
30228		250	45.75	42	36	4	3	1	420000	570000	1400	1900	9.26
32228		250	71.75	68	58	4	3	1	610000	920000	1400	1900	14.1
30328		300	67.75	62	53	5	4	1.5	735000	950000	1300	1700	21.2
31328		300	77	70	47	5	4	1.5	685000	905000	1300	1700	23
32328		300	107.7	102	85	5	4	1.5	1160000	1700000	1300	2400	37.8
32930	150	210	38	38	30	2.5	2	0.6	268000	490000	1600	2100	3.92
32030		225	48	48	36	3	2.5	1	370000	655000	1400	1900	6.37
33030		225	59	59	46	3	2.5	1	457000	865000	2000	2600	8.15
30230		270	49	45	38	4	3	1	450000	605000	1300	1700	11.2
32230		270	77	73	60	4	3	1	700000	1070000	1200	1600	25.5
30330		320	72	65	55	5	4	1.5	680000	875000	1200	1600	24.7
31330		320	82	75	50	5	4	1.5	775000	1030000	1200	1600	27.7
32330		320	114	108	90	5	4	1.5	1320000	1930000	1200	2200	46.1
32932	160	220	38	38	30	2.5	2	1	296000	570000	1400	1900	4.32
32032		240	51	51	38	3	2.5	1	425000	750000	1300	1800	7.93
30232		290	52	48	40	4	3	1	530000	730000	1200	1600	13.7
32232		290	84	80	67	4	3	0.6	795000	1120000	1200	1600	22.7
30332		340	75	68	58	5	4	0.6	765000	960000	1000	1400	28.4
32332		340	121	114	95	5	4	0.6	1210000	1770000	1000	1400	48.3
32934	170	230	38	36	31	2.5	2.5	1	258000	485000	1300	1800	4.3
32034		260	57	57	43	3	2.5	1	505000	890000	1200	1700	10.6
30234		310	57	52	43	5	4	0.5	63000	885000	1100	1500	17.1
32234		310	91	86	71	5	4	0.5	930000	1450000	1100	1500	28
30334		360	80	72	62	5	4	0.5	845000	1080000	950	1300	33.5
32334		360	127	120	100	5	4	0.5	1370000	2050000	1000	1300	57
32936	180	250	45	45	34	2.5	2	0.6	350000	685000	1300	1700	6.56
32036		280	64	64	48	3	2.5	0.6	640000	1130000	1200	1600	14.3
30236		320	57	52	43	5	4	1	650000	930000	1100	1400	17.8
32236		320	91	86	71	5	4	1	960000	1540000	1100	1400	29.8
30336		380	83	75	64	5	4	0.6	935000	1230000	900	1300	39.3
32336		380	134	126	106	5	4	0.6	1520000	2290000	950	1300	66.8
32938	190	260	45	45	34	2.5	2	1	365000	715000	1200	1600	6.83
32038		290	64	64	48	3	2.5	1	650000	1170000	1100	1500	14.9
30238		340	60	55	46	5	4	1	760000	1080000	1000	1300	21.4
32238		340	97	92	75	5	4	1	1110000	1770000	1000	1400	35.2
30338		400	86	78	65	6	5	0.6	1010000	1340000	850	1200	46
32338		400	140	132	109	6	5	0.6	1660000	2580000	850	1200	78.9
32940	200	280	51	48	41	3	2.5	1	410000	780000	1100	1500	9.26
32040		310	70	70	53	3	2.5	1	760000	1370000	1000	1400	18.9
30240		360	64	58	48	5	4	1	825000	1180000	950	1300	25.1
32240		360	104	98	82	5	4	1	1210000	1920000	950	1300	42.6
30340		420	89	80	67	6	5	0.6	1030000	1390000	850	1200	52.3
32340		420	146	138	115	6	5	0.6	1820000	2870000	800	1100	90.9
32944	220	300	51	51	39	3	2.5	1.5	490000	990000	1000	1400	10.3
32044		340	76	76	57	4	3	1.5	885000	1610000	950	1300	24.4
30244		400	72	65	54	5	4	1.5	810000	1150000	850	1100	33.6
32244		400	114	108	90	5	4	0.6	1340000	2210000	850	1100	57.4
30344		460	97	88	73	6	5	0.6	1430000	1990000	750	1000	72.4
32344		460	154	145	122	6	5	0.6	2020000	3200000	750	1000	114
32948	240	320	51	51	39	3	2.5	1.5	500000	1040000	950	1300	11.1
32048		360	76	76	57	4	3	1.5	920000	1730000	850	1200	26.2
30248		440	79	72	60	5	4	1	990000	1400000	750	1000	45.2
32248		440	127	120	100	5	4	1	1630000	2730000	750	1000	78
30348		500	105	95	80	6	5	1	1660000	2340000	670	950	92.6
32348		500	165	155	132	6	5	0.6	2520000	4100000	670	900	145
32952	260	360	63.5	63.5	48	3	2.5	0.6	730000	1450000	850	1100	18.6
32052		400	87	87	65	5	4	0.6	1160000	2160000	800	1100	38.5
30252		480	89	80	67	6	5	1	1190000	1700000	670	900	60.7
32252		480	137	130	106	6	5	1	1900000	3300000	670	950	103
30352		540	113	102	85	6	6	0.6	1870000	2640000	630	850	114
32352		540	176	165	136	6	6	0.6	2910000	4800000	630	850	188
32956	280	380	63.5	63.5	48	3	2.5	1.5	765000	1580000	800	1100	20
32056		420	87	87	65	5	4	1.5	1180000	2240000	710	1000	40.6
30256		500	89	80	67	6	5	1.5	1240000	1900000	630	850	66.3
32256		500	137	130	106	6	5	1	1950000	3450000	630	850	109
32356		580	187	175	145	6	6	1	3300000	5400000	560	800	224
32960	300	420	76	72	62	4	3	0.6	895000	1820000	710	950	30.5
32060		460	100	100	74	5	4	0.6	1440000	2700000	670	900	56.6
30260		540	96	85	71	6	5	1	1440000	2100000	600	800	80.6
32260		540	149	140	115	6	5	1	2220000	3700000	600	800	132
32964	320	440	76	72	63	4	3	1	900000	1880000	970	900	32
32064		480	100	100	74	5	4	0.6	1510000	2910000	630	850	60
30264		580	104	92	75	6	5	0.6	1640000	2420000	530	750	99.3
32264		580	159	150	125	6	5	0.6	2860000	5050000	530	750	175
32364		670	210	200	170	7.5	7.5	1	4200000	7100000	480	670	343
32968	340	460	76	72	63	4	3	1	910000	1940000	630	850	33.6
32068	340	520	112	106	92	6	5	1	1650000	3400000	560	750	83.7
32972	360	480	76	72	62	4	3	0.6	945000	2100000	600	800	35.8
32072	360	540	112	106	92	6	5	0.6	1680000	3500000	530	750	86.5
32976	380	520	87	82	71	5	4	0.6	1210000	2550000	560	750	49.5
32980	400	540	87	82	71	5	4	1	1250000	2700000	530	710	52.7
32080	400	600	125	118	100	6	5	1	1960000	4050000	480	670	116
32984	420	560	87	82	72	5	4	1	1300000	2810000	500	670	54.8
32084	420	620	125	118	100	6	5	0.6	2000000	4200000	450	630	121
32088	440	650	130	122	104	6	6	0.6	2230000	4600000	430	600	136

If more, please click our website www.jito.cc

Advantage

Solution

At the beginning, we will have a communication with our customers on their demand, then our engineers will work out an optimum solution based on the customers’ demand and condition.

Quality Control (Q/C)

In accordance with ISO standards, we have professional Q/C staff, precision testing instruments and internal inspection system, the quality control is implemented in every process from material receiving to products packaging to ensure our bearings quality.

Package

Standardized export packing and environment-protected packing material are used for our bearings, the custom boxes, labels, barcodes etc. can also be provided according to our customer’s request.

Logistic

Normally, our bearings will be sent to the customers by ocean transportation due to its heavy weight, airfreight, express is also available if our customers need.

Warranty

We warrant our bearings to be free from defects in material and workmanship for a 12 months period from the shipping date, this warranty is voided by non-recommended use, improper installation or physical damage.

description2

32008 Taper Roller Bearing Metric JITO China Supplier/Manufacturer 406819 Automotive/Agriculture Machinery

Bearing Detail

Bearing Characteristics

Application areas

Related 30300 Series Tapered Roller Bearings Catalogue

Advantage

Solution

Quality Control (Q/C)

Package

Logistic

Warranty

LM11910 Taper Roller Bearing (Inch) use with 3/4 inch (19.05mm) Shafts Separate Structure GCr15

30205 Taper Roller Bearing Separability 255216.25 High Load Automotive/Mining/Wind Power Equipment

32306 Taper Roller Bearing (Metric) Separable Structure 307228.75 Automobile Industry/ Construction Machinery High Load

32919 Taper Roller Bearing (Metric) 9513023 Automotive/Machine Tool Industry High Quality

Leave Your Message

32008 Taper Roller Bearing Metric JITO China Supplier/Manufacturer 40*68*19 Automotive/Agriculture Machinery

Bearing Detail

Bearing Characteristics

Application areas

Related 30300 Series Tapered Roller Bearings Catalogue

Advantage

Solution

Quality Control (Q/C)

Package

Logistic

Warranty

Leave Your Message

32008 Taper Roller Bearing Metric JITO China Supplier/Manufacturer 406819 Automotive/Agriculture Machinery
